Removal [11/2016 - ]: Procedure

  1. REMOVE REAR COMBINATION LIGHT ASSEMBLY
    1. Disengage the 4 claws to remove the rear combination light cover.

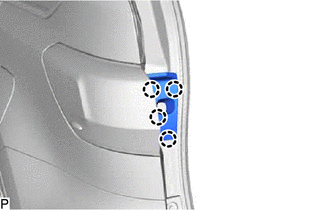

      GTY764220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.

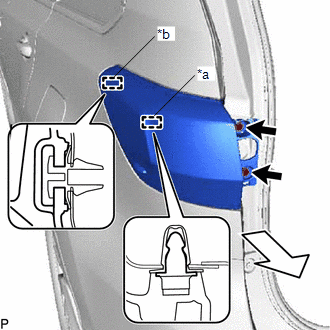

      GTY723244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin
      *b Guide
    3. Disengage the pin and guide, and separate the rear combination light assembly as shown in the illustration.
    4. Disengage the 3 clamps.

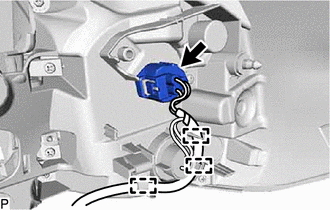

      GTY721095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the connector.
    6. Turn the rear combination light socket and wire sub-assembly with the rear turn signal light bulb as shown in the illustration to remove the rear combination light assembly.

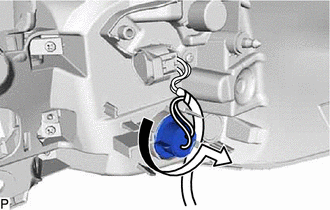

      GTY721094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR TURN SIGNAL LIGHT BULB
    1. Remove the rear turn signal light bulb from the rear combination light socket and wire sub-assembly.
  3. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  5. REMOVE DECK SIDE TRIM BOX LH

    Refer to PROCEDURE - Step 3

  6. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 4

  7. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 5

  8. REMOVE REAR NO. 2 SEAT ASSEMBLY

    Refer to REMOVAL [11/2016 - ]

  9. REMOVE REAR OUTER SEAT TRACK BRACKET COVER

    Refer to PROCEDURE - Step 4

  10. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 12

  11. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP
    1. Disconnect the rear door opening trim weatherstrip.
  12. REMOVE FRONT DECK SIDE TRIM COVER

    Refer to PROCEDURE - Step 27

  13. DISCONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY

    Refer to PROCEDURE - Step 11

  14. REMOVE NO. 2 DECK SIDE TRIM COVER (for LH Side)

    Refer to PROCEDURE - Step 29

  15. REMOVE NO. 1 DECK SIDE TRIM COVER (for RH Side)

    Refer to PROCEDURE - Step 40

  16. REMOVE DECK TRIM SIDE SERVICE HOLE COVER (for LH Side)

    Refer to PROCEDURE - Step 30

  17. REMOVE DECK TRIM SIDE BELT HOLE COVER RH (for RH Side)

    Refer to PROCEDURE - Step 41

  18. DISCONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY

    Refer to PROCEDURE - Step 14

  19. REMOVE SIDE TRIM COVER RH (for RH Side)

    w/o Rear Automatic Air Conditioning System: Refer to PROCEDURE - Step 43

  20. REMOVE COOLER (NO. 2 ROOM TEMP. SENSOR) THERMISTOR (for RH Side)

    w/ Rear Automatic Air Conditioning System: Refer to PROCEDURE - Step 1

  21. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 1

  22. REMOVE DECK TRIM POCKET COVER

    Refer to PROCEDURE - Step 32

  23. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 33

  24. REMOVE ROPE HOOK

    Refer to PROCEDURE - Step 34

  25. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side)

    Refer to PROCEDURE - Step 35

  26. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 49

  27. REMOVE REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY
    1. Disconnect the connector.

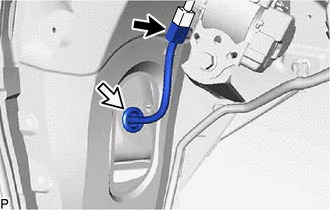

      GTY738530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the grommet to remove the rear combination light socket and wire sub-assembly.
