Removal [12/2013 - ]: Procedure

  1. REMOVE CENTER STOP LIGHT ASSEMBLY

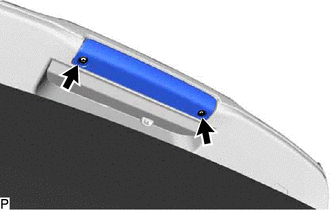

    1. Remove the 2 screws to disconnect the center stop light assembly.
      GTY440354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the center stop light assembly.
