Disassembly [12/2013 - 11/2016]: Procedure

  1. REMOVE NO. 1 HEADLIGHT BULB

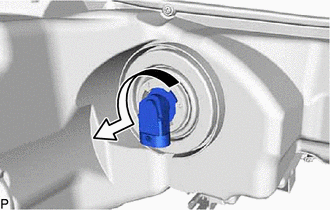

    1. Turn the No. 1 headlight bulb as shown in the illustration to remove it.
      GTY440324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the bulb glass.

  2. REMOVE NO. 2 HEADLIGHT BULB
    1. Turn the No. 2 headlight bulb as shown in the illustration to remove it.
      GTY453988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the bulb glass.

  3. REMOVE FRONT TURN SIGNAL AND PARKING LIGHT BULB

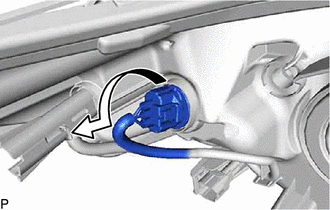

    1. Turn the headlight cord with the front turn signal and parking light bulb as shown in the illustration to disconnect them as a unit.
      GTY440321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the front turn signal and parking light bulb from the headlight cord.
  4. REMOVE FRONT SIDE MARKER LIGHT BULB

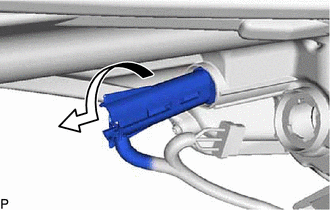

    1. Turn the headlight cord with the front side marker light bulb as shown in the illustration to disconnect them as a unit.
      GTY440320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the front side marker light bulb from the headlight cord.
