Disassembly [12/2013 - ]: Procedure

  1. REMOVE FOG LIGHT BULB

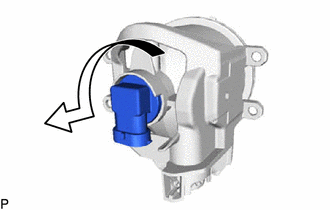

    1. Turn the fog light bulb as shown in the illustration to remove it.
      GTY435073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the bulb glass.
