Components [11/2016 - ]: Illustration

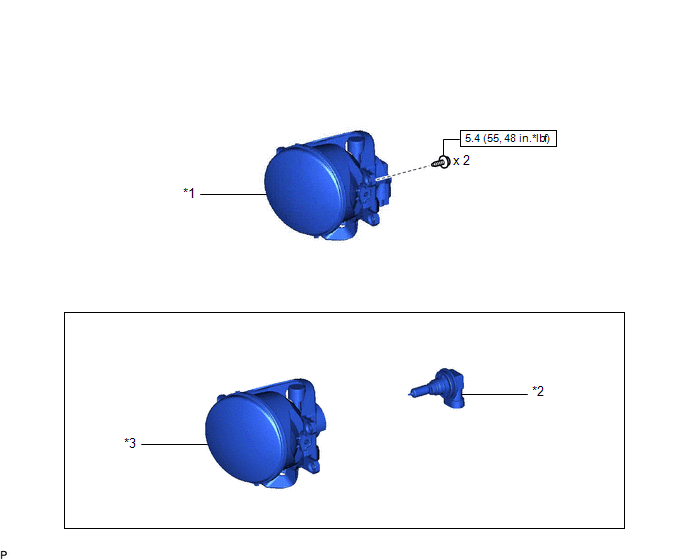

Fig 1: Fog Light Assembly Replacement Components With Torque Specifications
GTY727694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FOG LIGHT ASSEMBLY *2 FOG LIGHT BULB
*3 FOG LIGHT UNIT - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
