Components [12/2013 - ]: Illustration

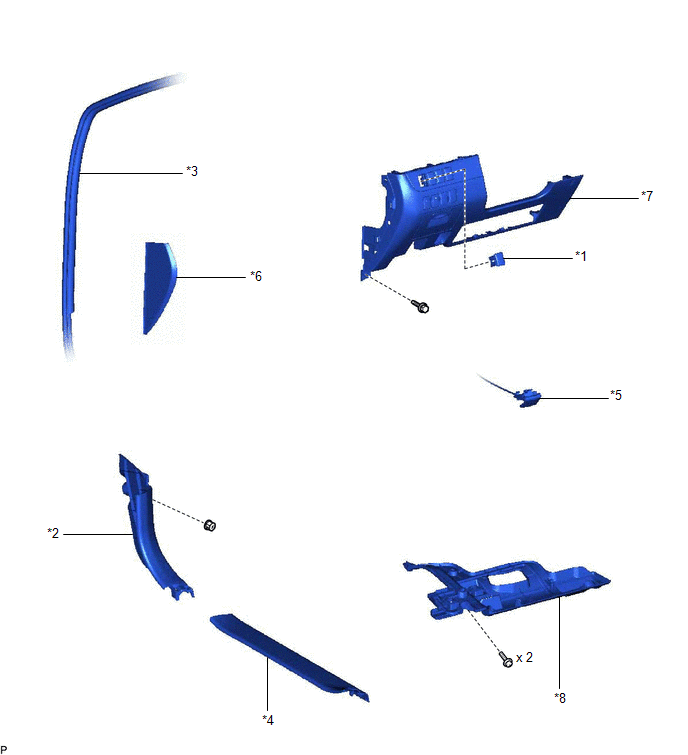

Fig 1: Automatic High Beam Main Switch Replacement Components
GTY448448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AUTO HIGH BEAM SWITCH *2 COWL SIDE TRIM SUB-ASSEMBLY LH
*3 FRONT DOOR OPENING TRIM WEATHERSTRIP LH *4 FRONT DOOR SCUFF PLATE LH
*5 HOOD LOCK CONTROL LEVER SUB-ASSEMBLY *6 INSTRUMENT PANEL FINISH PANEL END LH
*7 LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY *8 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
