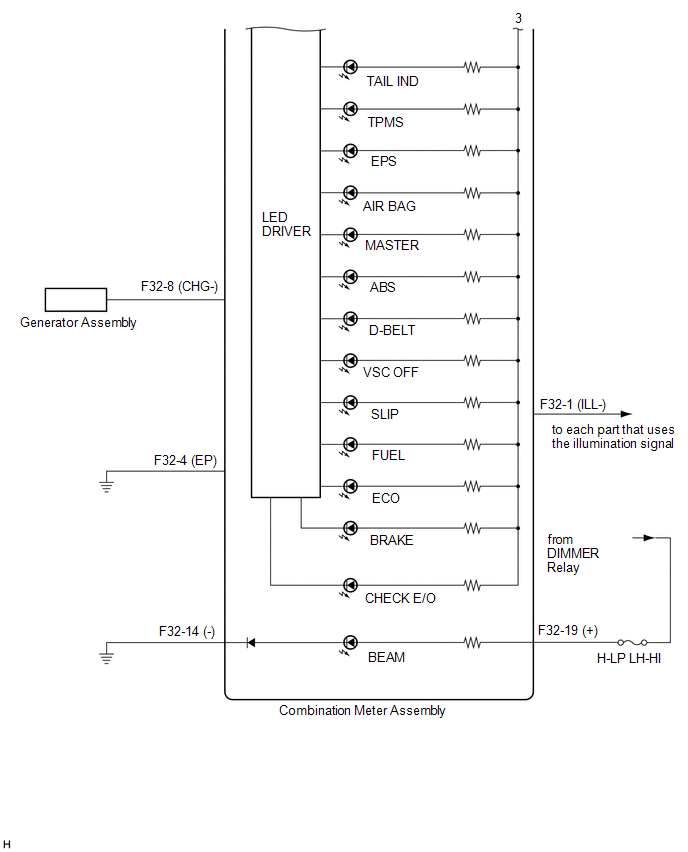

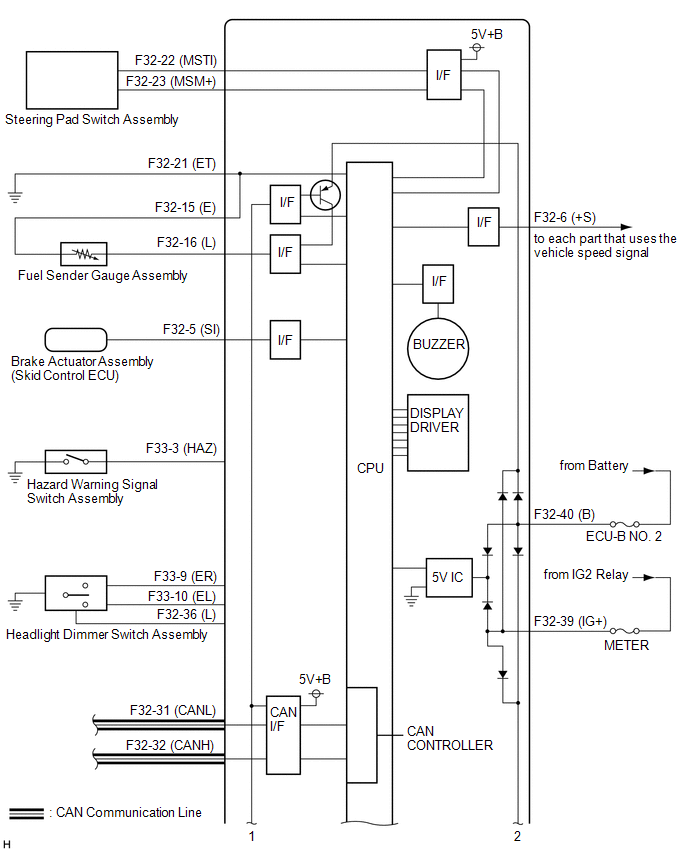

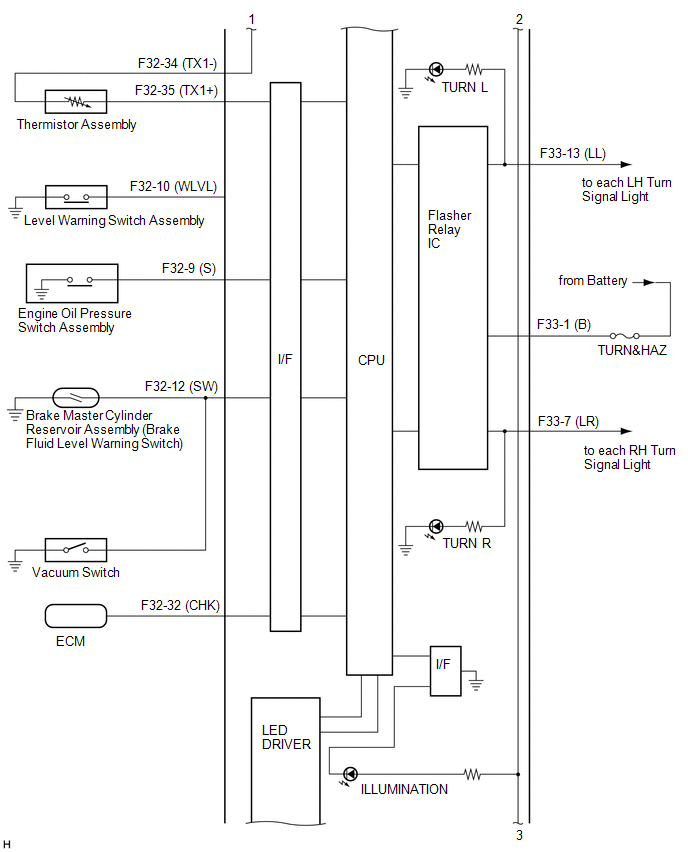

Home >> Toyota >> 2018 >> Corolla iM Standard Trans >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter / Gauge System - Diagnostics - Introduction >> Meter / Gauge System >> System Diagram [08/2016 - ] >> System Diagram [08/2016 - ]
