Parts Location [08/2016 - ]: Illustration
| *1 | FUEL SENDER GAUGE ASSEMBLY | *2 | THERMISTOR ASSEMBLY |
| *3 | VACUUM SWITCH | *4 | LEVEL WARNING SWITCH ASSEMBLY |
| *5 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY - BRAKE FLUID LEVEL WARNING SWITCH |
*6 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
| *7 | ECM | *8 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE - TURN&HAZ FUSE - H-LP LH-HI FUSE |
| *9 | GENERATOR ASSEMBLY | - | - |
| *1 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY | *2 | HEADLIGHT DIMMER SWITCH ASSEMBLY |
| *3 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY | *4 | STEERING PAD SWITCH ASSEMBLY |
| *5 | AIRBAG SENSOR ASSEMBLY | *6 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *7 | COMBINATION METER ASSEMBLY | *8 | DLC3 |
| *9 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - METER FUSE |
*10 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *11 | POWER STEERING ECU ASSEMBLY | - | - |

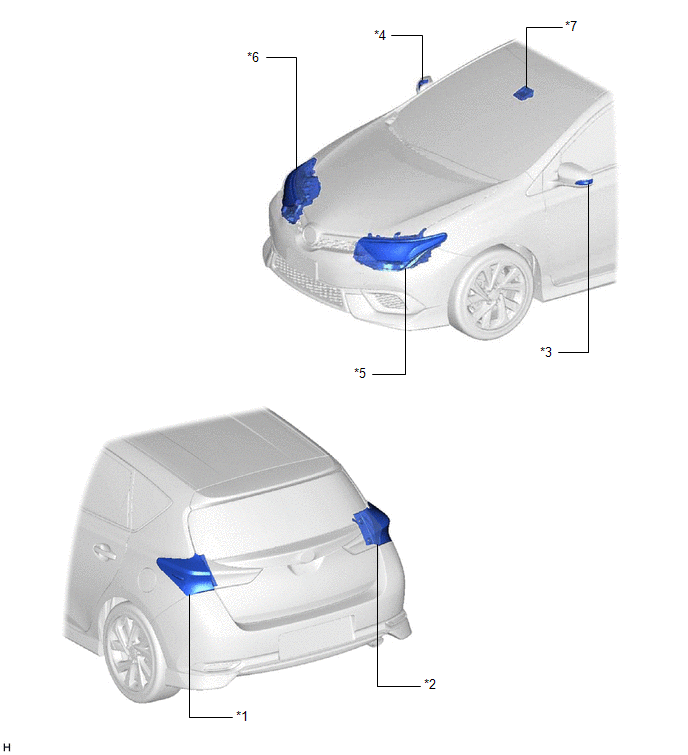

| *1 | REAR COMBINATION LIGHT ASSEMBLY LH | *2 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *3 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *5 | HEADLIGHT ASSEMBLY LH | *6 | HEADLIGHT ASSEMBLY RH |
| *7 | PRE-COLLISION CITY SENSOR (w/ Pre-collision System) | - | - |
