Inspection [06/2017 - 09/2019]: Procedure

1. Inspect the tires for wear and proper inflation pressure.

   Cold Tire Inflation Pressure

   FOR TMC MADE



   Tire Size	Cold Tire Inflation Pressure
   	Front	Rear
   215/55R17 94V 235/45R18 94V	240 kPa (2.4 kgf/cm2 , 35 psi)	240 kPa (2.4 kgf/cm2 , 35 psi)

   FOR TMMK MADE



   Tire Size	Cold Tire Inflation Pressure
   	Front	Rear
   205/65R16 95H 215/55R17 94V 235/45R18 94V 235/40R19 92V 235/45R18 94W 235/45R18 94Y	240 kPa (2.4 kgf/cm2 , 35 psi)	240 kPa (2.4 kgf/cm2 , 35 psi)

   Cold Tire Inflation Pressure (for Compact Spare Tire)

   Tire Size	Cold Tire Inflation Pressure
   T155/70D17 110M	420 kPa (4.2 kgf/cm2 , 60 psi)

   1. Perform initialization.

      Refer to INITIALIZATION [06/2017 - 08/2018] , or refer to INITIALIZATION [08/2018 - 09/2019]

   2. Tire pressure adjustment method when warm:
      1. Turn the ignition switch off.
      2. Connect the Techstream to the DLC3.
      3. Turn the ignition switch to ON.
      4. Turn the Techstream on.
      5. Enter the following menus: Chassis / Tire Pressure Monitor / Data List.
      6. Adjust the tire pressure so that the displayed value is equal to the set pressure.
      7. Perform initialization and check that initialization completes.

         Refer to INITIALIZATION [06/2017 - 08/2018] , or refer to INITIALIZATION [08/2018 - 09/2019]

      8. Check and record the value of the Data List item "Temperature in Tire". (Ts)
      9. Check and record the ambient temperature during tire pressure adjustment. (Tm)
      10. Readjust the tire pressure according to the difference between the tire internal temperature (Ts) and the ambient temperature (Tm). (P)

          HINT:

          Tire internal temperature: Ts, Ambient temperature: Tm, Tire pressure readjustment value: P

          P = (Specified Pressure) + (Ts - Tm)

      11. Check the pressure adjustment value with the Data List item "Tire Inflation Pressure".
2. Using a dial indicator, check the runout of the tires.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Maximum Tire Runout

   1.4 mm (0.0551 in.)

   HINT:

   Measure the runout with the wheel assembly removed from the vehicle.

1. Remove the wheel assembly.

   Refer to PROCEDURE - Step 1

2. Rotate the tires as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Front

3. Install the wheel assembly.

   Refer to PROCEDURE - Step 1

4. Perform initialization.

   Refer to INITIALIZATION [06/2017 - 08/2018] , or refer to INITIALIZATION [08/2018 - 09/2019]

1. Inspect and adjust the off-the-car balance.
   1. For Steel Wheel:

      Maximum Wheel Imbalance

      8.0 g (0.0176 lb)

      HINT:

      • Use clip-on type balance weights for both the inner and outer side.
      • If the tires vibrate even after the off-the-car balance adjustment, adjust the wheel balance with on-the-car balancing as necessary.
   2. except Steel Wheel:

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

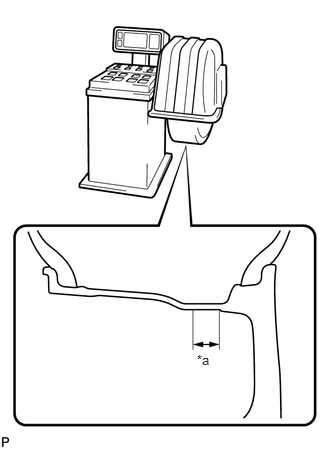

      *a	25 mm (0.984 in.)

      Maximum Wheel Imbalance

      8.0 g (0.0176 lb)

      NOTE:

      • Use a cleaning detergent to remove dirt, oil and water from the surface where the balance weight is to be adhered.
      • Do not touch the adhesive surface of the balance weight.
      • Adhere a stick-on type balance weight to the flat surface*a shown in the illustration.
      • Push the balance weight with your finger to securely adhere it to the desired position.
      • Do not reuse balance weights.
      • Use only TOYOTA genuine stick-on type balance weights or equivalent.

      HINT:

      • Use clip-on type balance weights for the inner side, and stick-on type balance weights for the outer side.
      • If the tires vibrate even after the off-the-car balance adjustment, adjust the wheel balance with on-the-car balancing as necessary.

Refer to ON-VEHICLE INSPECTION [03/2017 - 09/2019]

w/ Electric Parking Brake System: Refer to ON-VEHICLE INSPECTION [06/2017 - ]

w/o Electric Parking Brake System: Refer to ON-VEHICLE INSPECTION [03/2017 - ]
