Components [06/2017 - 03/2020]
Fig 1: Rear Trailing Arm Replacement Components With Torque Specifications [06/2017 - 03/2020] (1 Of 4)
| Callout | Description | Callout | Description |
| *A | For RH Side | *B | For LH Side |
| *1 | NO. 1 FLOOR UNDER COVER | *2 | NO. 2 FLOOR UNDER COVER |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

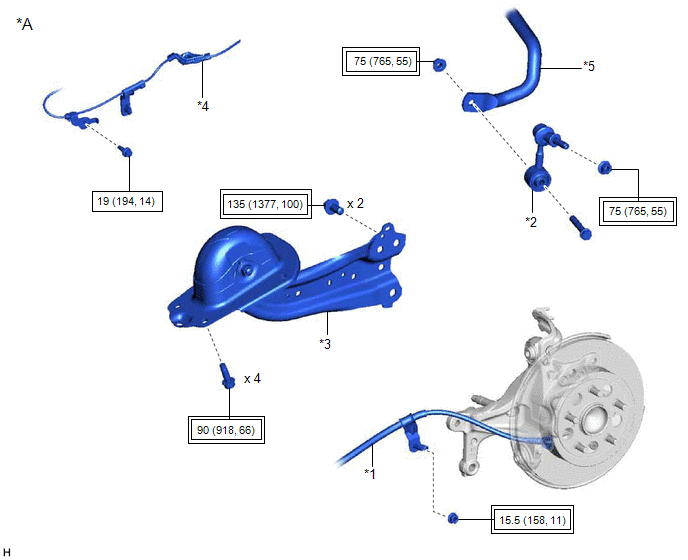

Fig 2: Rear Trailing Arm Replacement Components With Torque Specifications [06/2017 - 03/2020] (2 Of 4)
| Callout | Description | Callout | Description |
| *A | w/o Electric Parking Brake System | - | - |
| *1 | NO. 3 PARKING BRAKE CABLE ASSEMBLY | *2 | REAR STABILIZER LINK ASSEMBLY |
| *3 | REAR TRAILING ARM ASSEMBLY | *4 | SKID CONTROL SENSOR WIRE |
| *5 | REAR STABILIZER BAR | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque |

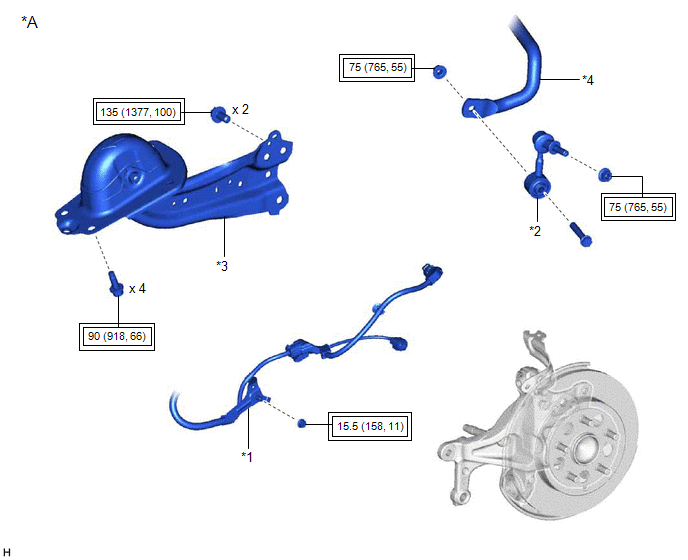

Fig 3: Rear Trailing Arm Replacement Components With Torque Specifications [06/2017 - 03/2020] (3 Of 4)
| Callout | Description | Callout | Description |
| *A | w/ Electric Parking Brake System | - | - |
| *1 | NO. 2 PARKING BRAKE WIRE ASSEMBLY | *2 | REAR STABILIZER LINK ASSEMBLY |
| *3 | REAR TRAILING ARM ASSEMBLY | *4 | REAR STABILIZER BAR |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
Fig 4: Rear Trailing Arm Replacement Components With Torque Specifications [06/2017 - 03/2020] (4 Of 4)
| Callout | Description | Callout | Description |
| *1 | REAR SUSPENSION ARM BRACKET | *2 | REAR SUSPENSION ARM COVER |
| *3 | REAR TRAILING ARM ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
