Components [03/2020 - ]

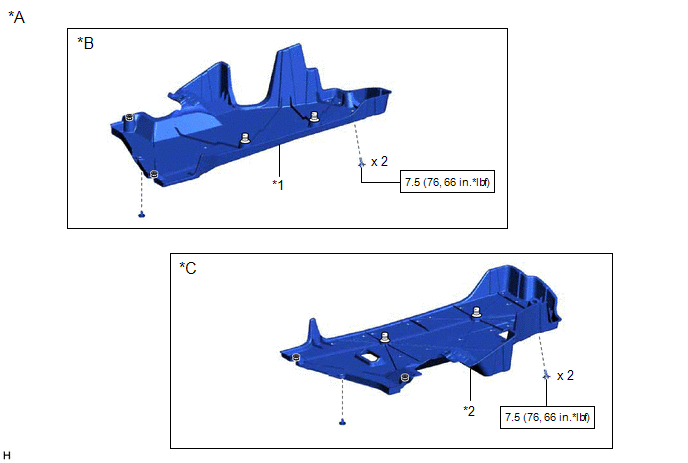

Fig 1: Rear Coil Spring Replacement Components With Torque Specifications [03/2020 - ] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	For 2WD	*B	For RH Side
*C	For LH Side	-	-
*1	NO. 1 FLOOR UNDER COVER	*2	NO. 2 FLOOR UNDER COVER
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

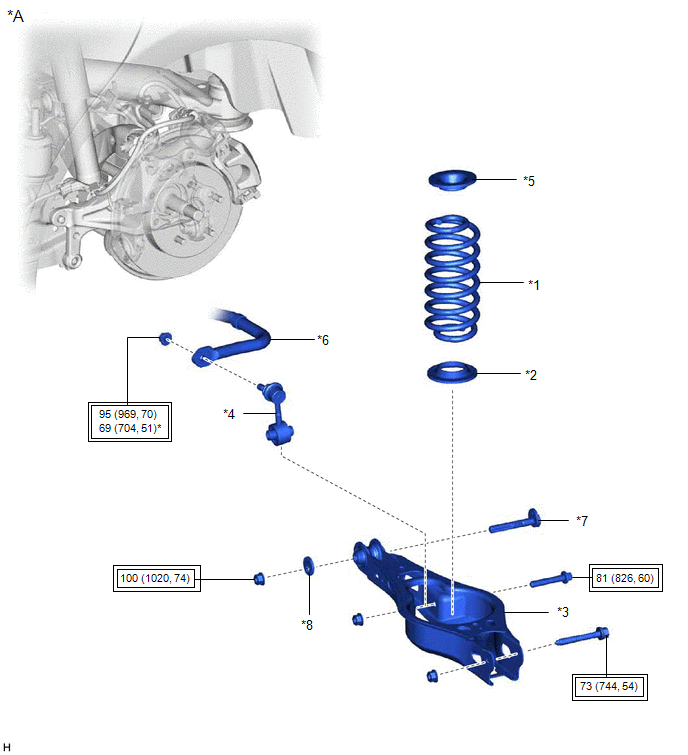

Fig 2: Rear Coil Spring Replacement Components With Torque Specifications [03/2020 - ] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	For 2WD	-	-
*1	REAR COIL SPRING	*2	REAR LOWER COIL SPRING INSULATOR
*3	REAR NO. 2 SUSPENSION ARM ASSEMBLY	*4	REAR STABILIZER LINK ASSEMBLY
*5	REAR UPPER COIL SPRING INSULATOR	*6	REAR STABILIZER BAR
*7	REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY	*8	NO. 2 CAMBER ADJUST CAM
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-

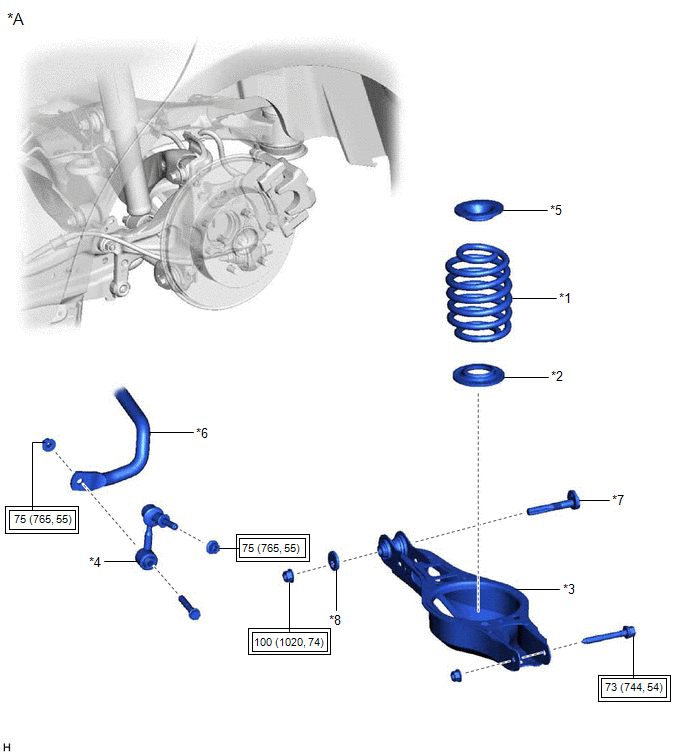

Fig 3: Rear Coil Spring Replacement Components With Torque Specifications [03/2020 - ] (3 Of 3)

Callout	Description	Callout	Description
*A	For AWD	-	-
*1	REAR COIL SPRING	*2	REAR LOWER COIL SPRING INSULATOR
*3	REAR NO. 2 SUSPENSION ARM ASSEMBLY	*4	REAR STABILIZER LINK ASSEMBLY
*5	REAR UPPER COIL SPRING INSULATOR	*6	REAR STABILIZER BAR
*7	REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY	*8	NO. 2 CAMBER ADJUST CAM
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-
