Precaution [03/2017 - ]
WARNING:
Replace any faulty parts of the seat belt systems (outer belt, inner belt, bolts, nuts, adjustable shoulder anchor, tether anchor hardware and other related parts). When inspecting a vehicle that has been involved in a collision, be sure to check all of the seat belt systems regardless of whether or not the system was activated in the collision. Replace any damaged or malfunctioning systems.

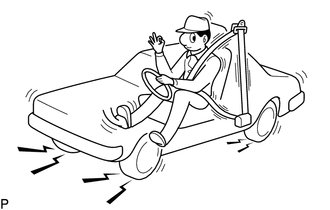

- ROAD TEST (IN SAFE AREA) WARNING:
Conduct this test in a safe area.
- Fasten the front seat belts.
- Drive the vehicle at 16 km/h (10 mph) and firmly depress the brake pedal. Check that the front seat outer belt assemblies lock and cannot be extended.
If a front seat outer belt assembly does not lock, replace it.
Refer to REMOVAL [03/2017 - 06/2017] , or refer to REMOVAL [06/2017 - 10/2020] , or refer to REMOVAL [10/2020 - ]
HINT:
Inspect the seat belt assembly before installing it.
See step 1
