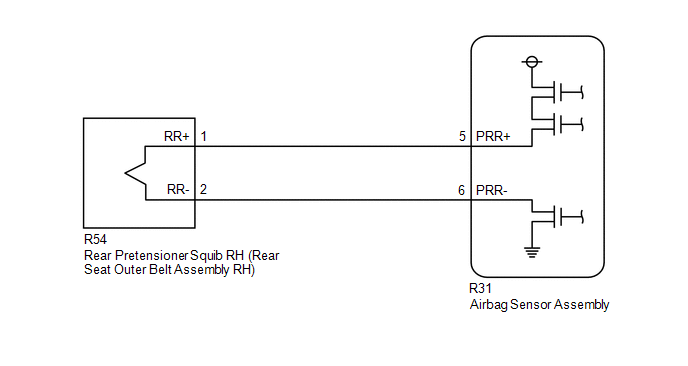

DTC B1920: Short in Rear P/T Squib (RH) Circuit; DTC B1921: Open in Rear P/T Squib (RH) Circuit; DTC B1922: Short in Rear P/T Squib (RH) Circuit (to Ground); DTC B1923: Short in Rear P/T Squib (RH) Circuit (to +B) [03/2017 - ]: Wiring Diagram

GTY759157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
