  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 19 [08/2018 - 10/2020] , or refer to PROCEDURE - Step 19 [10/2020 - 08/2022] , or refer to PROCEDURE - Step 19 [08/2022 - 08/2023] , or refer to PROCEDURE - Step 19 [08/2023 - ]

  2. REMOVE NO. 1 VACUUM SWITCHING VALVE ASSEMBLY (for ACIS)

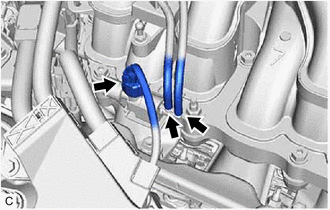

    1. Disconnect the No. 1 vacuum switching valve assembly (for ACIS) connector.
      GTY766188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 2 vacuum hose assemblies from the No. 1 vacuum switching valve assembly (for ACIS).
    3. Remove the bolt and No. 1 vacuum switching valve assembly (for ACIS) from the intake air surge tank assembly.
      GTY774170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
