Removal [06/2017 - 10/2020]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE FUEL DELIVERY PIPE
Refer to REMOVAL [06/2017 - 10/2020]
- REMOVE KNOCK CONTROL SENSOR

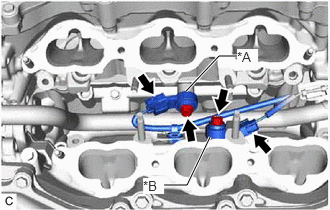

- Disconnect the 2 knock control sensor connectors.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *A |
For Bank 1 |
| *B |
For Bank 2 |
- Remove the 2 bolts and 2 knock control sensors from the cylinder block sub-assembly.
NOTE:
If a knock control sensor has been struck or dropped, replace it.
