Installation [06/2017 - ]: Procedure

HINT:

Perform "Inspection After Repair" after replacing a knock control sensor.

Refer to INITIALIZATION [06/2017 - 08/2018] , or refer to INITIALIZATION [08/2018 - 09/2019] , or refer to INITIALIZATION [09/2019 - ]

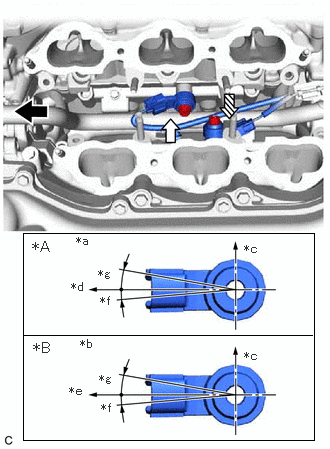

1. Temporarily install the 2 knock control sensors to the cylinder block sub-assembly with the 2 bolts so that the knock control sensor installation position is as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	For Bank 1
   *B	For Bank 2
   *a	View A
   *b	View B
   *c	Top
   *d	Engine Front
   *e	Engine Rear
   *f	5°
   *g	10°
   	Engine Front
   	View A
   	View B

   NOTE:

   • If a knock control sensor has been struck or dropped, replace it.
   • Make sure that the knock control sensor is installed in the correct position.
2. Tighten the bolt (A).

   Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Torque Wrench Fulcrum Length
   *b	10 mm Union Nut Wrench

3. Using a 10 mm union nut wrench, tighten the bolt (B).

   Specified tightening torque

   Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

   HINT:

   • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

     Refer to PRECAUTION [06/2017 - 09/2019] , or refer to PRECAUTION [09/2019 - 03/2020] , or refer to PRECAUTION [03/2020 - ]

   • When using a 10 mm union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

     17.6 N*m (179 kgf*cm, 13 ft.*lbf)

4. Connect the 2 knock control sensor connectors.

Refer to INSTALLATION [06/2017 - ]

1. Perform "Inspection After Repair" after replacing a knock control sensor.

   Refer to INITIALIZATION [06/2017 - 08/2018] , or refer to INITIALIZATION [08/2018 - 09/2019] , or refer to INITIALIZATION [09/2019 - ]
