Components [06/2017 - ]

WARNING: This page is about a different variant/trim than selected.

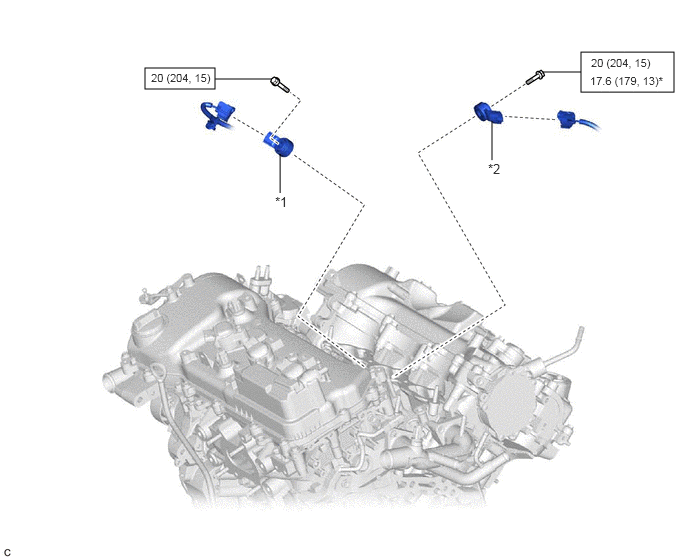

Fig 1: Knock Sensor Replacement Components With Torque Specifications
GTY744787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 KNOCK CONTROL SENSOR (for Bank 1) *2 KNOCK CONTROL SENSOR (for Bank 2)
N*m (kgf*cm, ft.*lbf): Specified torque * For use with a union nut wrench
