Components [06/2017 - ]
WARNING: This page is about a different variant/trim than selected.
| Callout | Description | Callout | Description |
| *1 | FRONT FLOOR COVER LH | *2 | FRONT FLOOR COVER RH |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

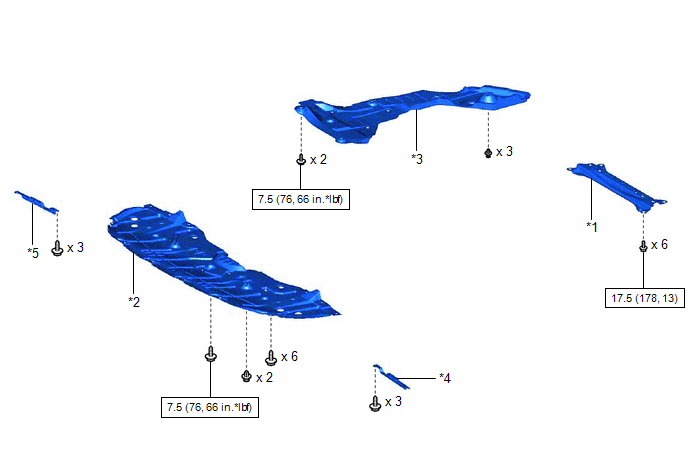

| Callout | Description | Callout | Description |
| *1 | BODY MOUNTING PLATE | *2 | NO. 1 ENGINE UNDER COVER |
| *3 | REAR ENGINE UNDER COVER RH | *4 | FRONT WHEEL OPENING EXTENSION PAD LH |
| *5 | FRONT WHEEL OPENING EXTENSION PAD RH | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

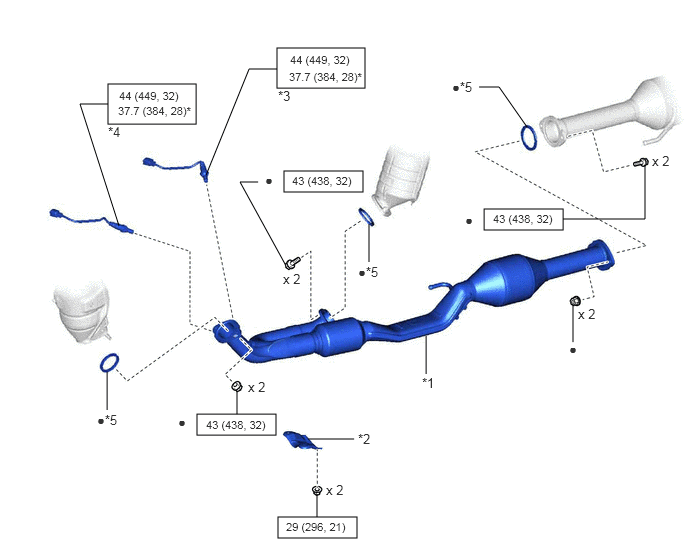

| Callout | Description | Callout | Description |
| *1 | FRONT EXHAUST PIPE ASSEMBLY | *2 | NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Lower Side) |
| *3 | HEATED OXYGEN SENSOR (for Bank 2) | *4 | HEATED OXYGEN SENSOR (for Bank 1) |
| *5 | GASKET | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with SST | |
| • | Non-reusable part | - | - |
