Removal [06/2017 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst)
Refer to REMOVAL [06/2017 - ]
- REMOVE CRANKSHAFT POSITION SENSOR PROTECTOR
- Remove the 3 bolts and crankshaft position sensor protector from the cylinder block sub-assembly and oil pan sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE CRANKSHAFT POSITION SENSOR

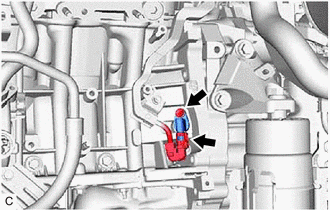

- Disconnect the crankshaft position sensor connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the bolt and crankshaft position sensor from the cylinder block sub-assembly.
NOTE:
If the crankshaft position sensor has been struck or dropped, replace it.
