Components [06/2017 - ]
WARNING: This page is about a different variant/trim than selected.

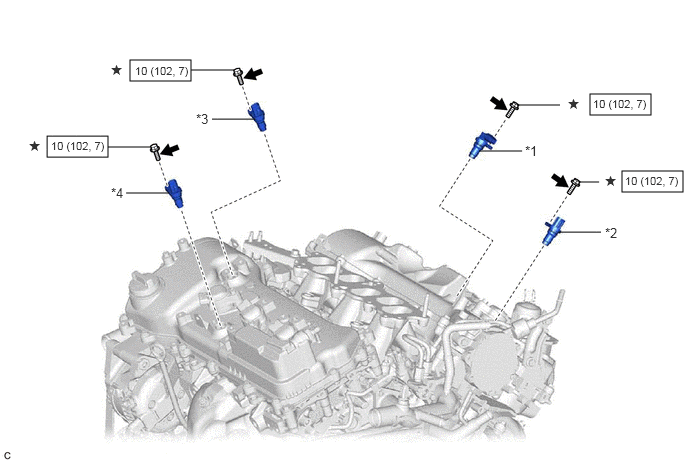

| Callout | Description | Callout | Description |
| *1 | VVT SENSOR (for Intake Side of Bank 1) | *2 | VVT SENSOR (for Exhaust Side of Bank 1) |
| *3 | VVT SENSOR (for Intake Side of Bank 2) | *4 | VVT SENSOR (for Exhaust Side of Bank 2) |
| N*m (kgf*cm, ft.*lbf): Specified torque | Adhesive 1324 | ||
| * | Precoated part | - | - |
