Components [06/2017 - ]
WARNING: This page is about a different variant/trim than selected.

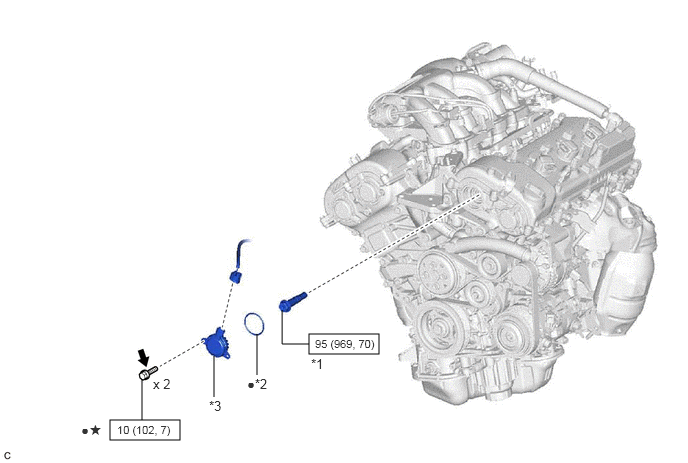

Fig 1: Camshaft Oil Control Valve (For Intake Side Of Bank 2) Replacement Components With Torque Specifications
| Callout | Description | Callout | Description |
| *1 | CAMSHAFT TIMING GEAR BOLT | *2 | O-RING |
| *3 | CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2) | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Adhesive 1324 | * | Precoated part |
