Components [06/2017 - ]
WARNING: This page is about a different variant/trim than selected.

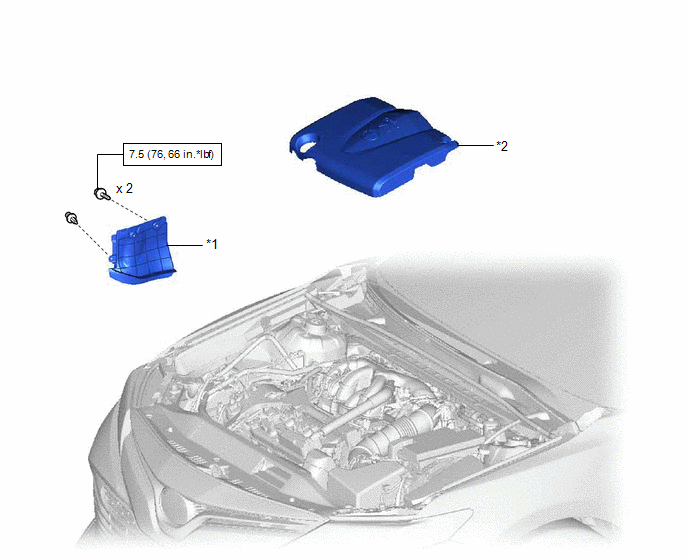

Fig 1: Camshaft Oil Control Valve (For Exhaust Side Of Bank 1) Replacement Components With Torque Specifications (1 Of 2)
| Callout | Description | Callout | Description |
| *1 | FRONT FENDER APRON SEAL RH | *2 | V-BANK COVER SUB-ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

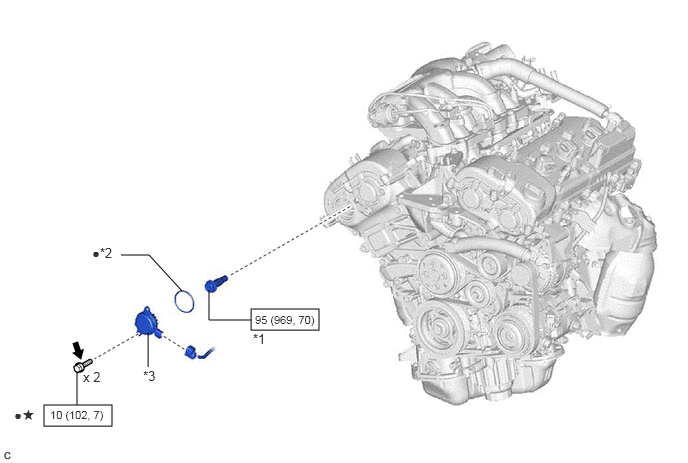

Fig 2: Camshaft Oil Control Valve (For Exhaust Side Of Bank 1) Replacement Components With Torque Specifications (2 Of 2)
| Callout | Description | Callout | Description |
| *1 | CAMSHAFT TIMING GEAR BOLT | *2 | O-RING |
| *3 | CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1) | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Adhesive 1324 | * | Precoated part |
