Components [06/2017 - ]
WARNING: This page is about a different variant/trim than selected.

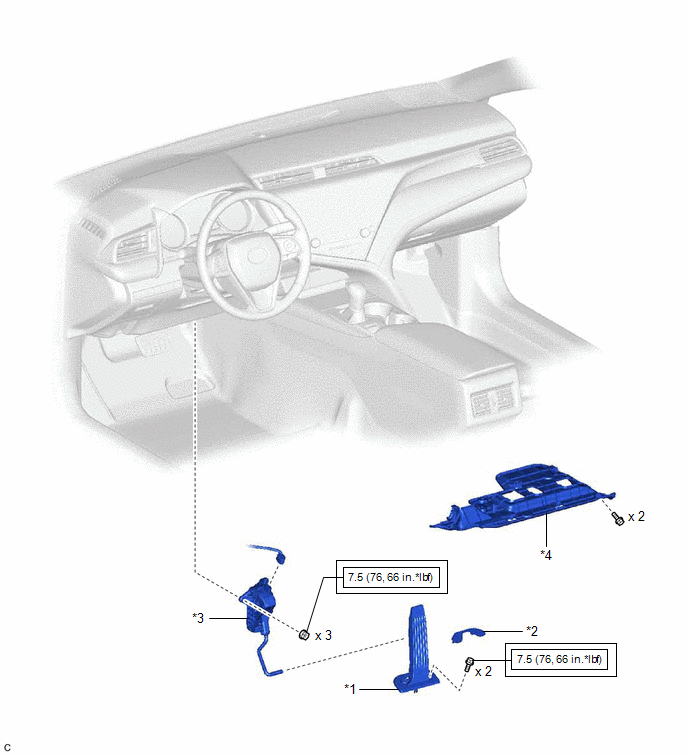

| Callout | Description | Callout | Description |
| *1 | ACCELERATOR PEDAL | *2 | ACCELERATOR PEDAL PAD |
| *3 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *4 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
