Removal [06/2017 - 08/2018]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT FRAME ASSEMBLY

    Refer to REMOVAL [06/2017 - 08/2018]

  2. REMOVE REAR ENGINE MOUNTING INSULATOR
    1. Remove the bolt and rear engine mounting insulator from the rear engine mounting bracket.

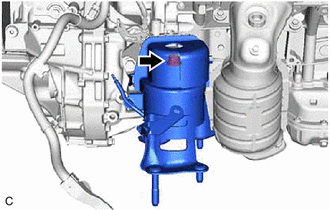

      GTY763554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and wire harness clamp bracket from the rear engine mounting insulator.
      GTY763555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the clamp and remove the vacuum hose from the rear engine mounting insulator.

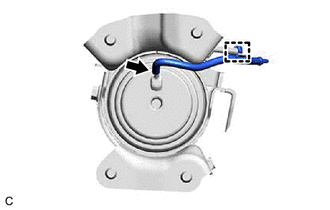

      GTY763552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
