Components [06/2017 - 10/2020]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Transmission Wire Replacement Components With Torque Specifications [06/2017 - 10/2020] (1 Of 5)
| Callout | Description | Callout | Description |
| *1 | REAR ENGINE UNDER COVER LH | *2 | FRONT FENDER APRON SEAL LH |
| *3 | NO. 1 ENGINE UNDER COVER | *4 | FRONT WHEEL OPENING EXTENSION PAD LH |
| *5 | FRONT WHEEL OPENING EXTENSION PAD RH | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
Fig 2: Transmission Wire Replacement Components With Torque Specifications [06/2017 - 10/2020] (2 Of 5)
| Callout | Description | Callout | Description |
| *1 | REFILL PLUG | *2 | NO. 1 TRANSMISSION OIL FILLER TUBE |
| *3 | OVERFLOW PLUG | *4 | GASKET |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| Toyota Genuine ATF WS | - | - |

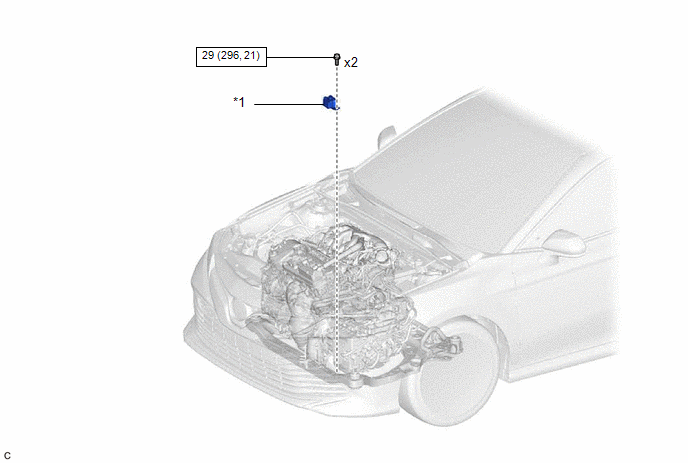

Fig 3: Transmission Wire Replacement Components With Torque Specifications [06/2017 - 10/2020] (3 Of 5)
| Callout | Description | Callout | Description |
| *1 | FRONT SUSPENSION MEMBER DYNAMIC DAMPER | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

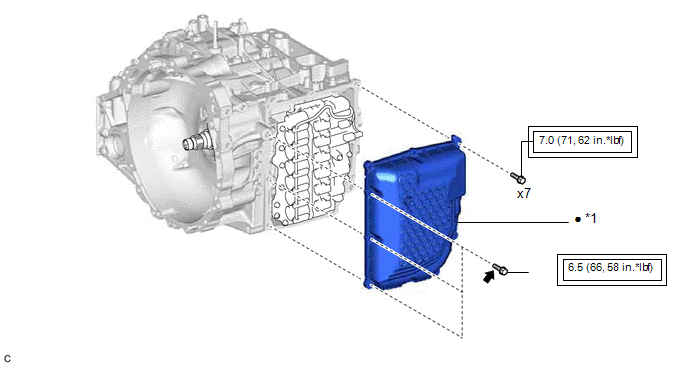

Fig 4: Transmission Wire Replacement Components With Torque Specifications [06/2017 - 10/2020] (4 Of 5)
| Callout | Description | Callout | Description |
| *1 | TRANSMISSION CASE SIDE COVER | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | * | Precoated part |
Fig 5: Transmission Wire Replacement Components With Torque Specifications [06/2017 - 10/2020] (5 Of 5)
| Callout | Description | Callout | Description |
| *1 | OIL COOLER UNION SUB-ASSEMBLY | *2 | OIL COOLER UNION BOLT |
| *3 | TRANSMISSION WIRE | *4 | TEMPERATURE SENSOR CLAMP |
| *5 | GASKET | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| Toyota Genuine ATF WS | - | - |
