Removal [06/2017 - 10/2020]: Procedure

WARNING: This page is about a different variant/trim than selected.

SECURE VEHICLE

Fully apply the parking brake and chock a wheel.

WARNING:

Make sure to apply the parking brake and chock a wheel before performing this procedure.
If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE BATTERY
Refer to REMOVAL [06/2017 - 10/2020]
REMOVE ECM
Refer to REMOVAL [06/2017 - 10/2020]
REMOVE BATTERY CLAMP SUB-ASSEMBLY
Refer to PROCEDURE - Step 25 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 25 [08/2018 - 10/2020]

DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

While disengaging the clip as shown in the illustration, disconnect the transmission control cable assembly from the transmission control shaft lever together with the clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Clip
*b	45° to 60°

REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

NOTE:

Both the park/neutral position switch assembly and transmission control shaft lever are available in two different shapes due to design changes. As they are not compatible with each other, when replacing the park/neutral position switch assembly, make sure to also replace the transmission control shaft lever as a set.

Disconnect the park/neutral position switch assembly connector.

Remove the nut, washer and transmission control shaft lever from the manual valve lever shaft sub-assembly.

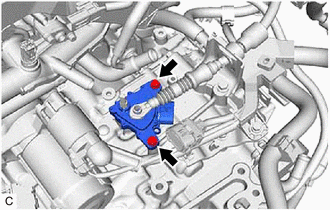

Remove the 2 bolts and park/neutral position switch assembly from the automatic transaxle case sub-assembly.

NOTE:

Before removing the park/neutral position switch assembly, remove any dirt or rust on the installation portion of the manual valve lever shaft sub-assembly. Be sure to remove the park/neutral position switch assembly straight along the manual valve lever shaft sub-assembly while being careful not to deform the plate spring that supports the manual valve lever shaft sub-assembly. If the plate spring is deformed, the park/neutral position switch assembly cannot be reinstalled correctly.
