Installation [06/2017 - ]: Procedure

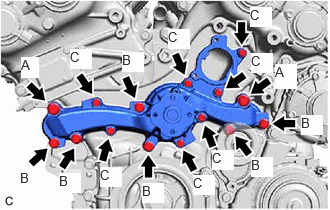

1. Install a new water pump gasket and the engine water pump assembly with the 15 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Bolt (A)

   Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

   Bolt (B)

   Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

   Bolt (C)

   Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

   Standard Length

   Item	Length
   Bolt (A)	60 mm (2.36 in.)
   Bolt (B)	55 mm (2.17 in.)
   Bolt (C)	22 mm (0.866 in.)

   NOTE:

   • Make sure that there is no oil on the threads of the bolts (A) and (B).
   • Do not start the engine for at least 1 hour after installation.

1. Temporarily install the water pump pulley with the 4 bolts.

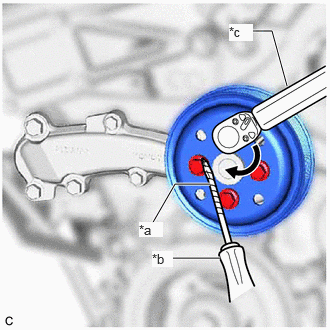

2. Using a screwdriver or equivalent with its tip wrapped in protective tape, hold the water pump pulley.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape
   *b	Hold
   *c	Turn

3. Fully tighten the 4 bolts.

   Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

1. Install the No. 2 idler pulley sub-assembly with the bolt.

   Torque: 54 N*m (551 kgf*cm, 40 ft.*lbf)
