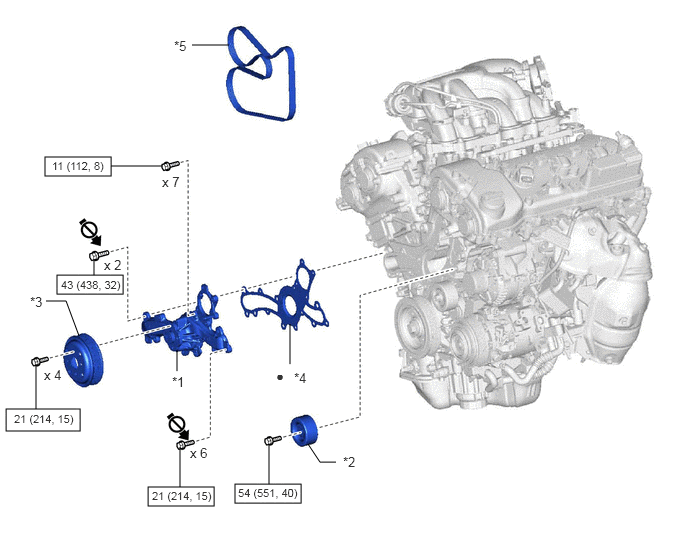

Components [06/2017 - ]
WARNING: This page is about a different variant/trim than selected.
| Callout | Description | Callout | Description |
| *1 | ENGINE WATER PUMP ASSEMBLY | *2 | NO. 2 IDLER PULLEY SUB-ASSEMBLY |
| *3 | WATER PUMP PULLEY | *4 | WATER PUMP GASKET |
| *5 | V-RIBBED BELT | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Do not apply lubricants to the threaded parts | - | - |
