Removal [06/2017 - 08/2018]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 10

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 8

  3. REMOVE ENGINE UNDER COVER No. 1

    Refer to PROCEDURE - Step 9

  4. REMOVE ENGINE UNDER COVER REAR LH

    Refer to PROCEDURE - Step 10

  5. REMOVE ENGINE UNDER COVER REAR RH

    Refer to PROCEDURE - Step 11

  6. DRAIN ENGINE COOLANT

    See step  1

  7. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19

  8. REMOVE ENGINE MOUNTING STAY No. 2 RH

    Refer to PROCEDURE - Step 14

  9. SEPARATE RADIATOR RESERVE TANK ASSEMBLY
    1. Disengage the clamp.
      GTY1097249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt, nut to separate the radiator reserve tank assembly.
  10. REMOVE ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH
    1. Disengage the 2 clamps.
      GTY1091839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Type A *B Type B
    2. Remove the bolt to separate the suction hose sub-assembly, suction pipe sub-assembly and air conditioning tube and accessory assembly.
    3. Using a safety stand, support the engine assembly with transaxle at the position shown in the illustration.
      GTY1084811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Support Area - -
      NOTE:
      • Make sure to firmly support the weight of the engine assembly and automatic transaxle assembly before removing the engine mounting insulator sub-assembly RH.
      • Do not place the safety stand under the oil pan.
    4. Support the engine assembly with automatic transaxle assembly at the position shown in the illustration to stabilize it.
      GTY1084594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Support Area
    5. Remove the 3 bolts and nut to separate the engine mounting insulator sub-assembly RH from the front No. 1 engine mounting bracket LH.
      GTY1084815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the nut, 2 bolts and engine mounting insulator sub-assembly RH from the engine mounting spacer and vehicle body.
      GTY1084816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. DISCONNECT ENGINE WIRE
    1. Disconnect the water inlet with thermostat sub-assembly connector.
      GTY768494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt.
    3. Disengage the clamp to disconnect the engine wire.
  12. REMOVE FRONT NO. 1 ENGINE MOUNTING BRACKET LH

    Refer to PROCEDURE - Step 7

  13. DISCONNECT WATER BY-PASS HOSE
    1. Slide the clip and disconnect the water by-pass hose.

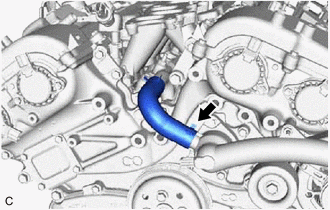

      GTY667700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY
    1. Remove the 2 bolts, 2 nuts and water inlet with thermostat sub-assembly.
      GTY684911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket from the water inlet with thermostat sub-assembly.
