Removal [06/2017 - 10/2020]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 8 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 8 [08/2018 - 10/2020]

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 7 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 7 [08/2018 - 10/2020]

  3. REMOVE REAR ENGINE UNDER COVER LH

    Refer to PROCEDURE - Step 10 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 10 [08/2018 - 10/2020]

  4. REMOVE REAR ENGINE UNDER COVER RH

    Refer to PROCEDURE - Step 11 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 11 [08/2018 - 10/2020]

  5. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 9 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 9 [08/2018 - 10/2020]

  6. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 1

  7. REMOVE HEADLIGHT ASSEMBLY

    Refer to REMOVAL [06/2017 - 10/2020]

  8. REMOVE THERMISTOR ASSEMBLY

    Refer to REMOVAL [06/2017 - 10/2020]

  9. REMOVE NO. 2 FRONT BUMPER ENERGY ABSORBER

    Refer to PROCEDURE - Step 36 [06/2017 - 09/2019] , or refer to PROCEDURE - Step 34 [09/2019 - 10/2020]

  10. REMOVE FRONT BUMPER ENERGY ABSORBER

    Refer to PROCEDURE - Step 37 [06/2017 - 09/2019] , or refer to PROCEDURE - Step 35 [09/2019 - 10/2020]

  11. REMOVE FRONT BUMPER REINFORCEMENT

    Refer to PROCEDURE - Step 38 [06/2017 - 09/2019] , or refer to PROCEDURE - Step 36 [09/2019 - 10/2020]

  12. REMOVE HOOD LOCK ASSEMBLY

    Refer to PROCEDURE - Step 5 [03/2017 - 09/2019] , or refer to PROCEDURE - Step 5 [09/2019 - ]

  13. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 20 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 20 [08/2018 - 10/2020]

  14. REMOVE UPPER RADIATOR MOUNTING BRACKET
    1. Disconnect the 2 horn connectors.
      GTY753597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

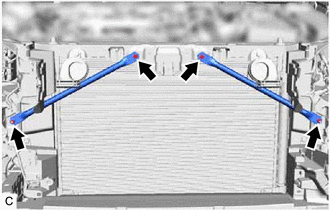

    2. Remove the 2 bolts, 2 nuts and 2 upper radiator mounting brackets.
      GTY753598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 1 RADIATOR AIR GUIDE LH
    1. Remove the clip and disengage the claw.
      GTY771852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Radiator Air Guide LH
      *2 Front Radiator Side Air Guide Plate LH
    2. Disengage the guide to remove the No. 1 radiator air guide LH with the front radiator side air guide plate LH.
  16. REMOVE NO. 1 RADIATOR AIR GUIDE RH
    1. Remove the clip and disengage the claw.

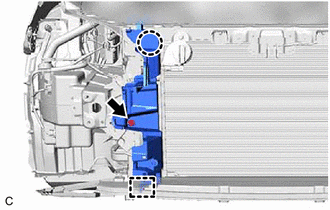

      GTY766538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the No. 1 radiator air guide RH.
  17. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY
    1. Disengage the clamp to disconnect the hood lock control cable assembly from the upper radiator support sub-assembly.
      GTY760217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

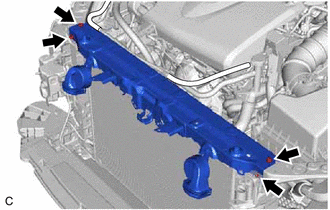

    2. Remove the 4 bolts and upper radiator support sub-assembly.
      GTY774681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. DISCONNECT NO. 5 WATER BY-PASS HOSE
    1. Disengage the 4 clamps to disconnect the No. 5 water by-pass hose and No. 6 water by-pass hose from the hose clamp (A).
      GTY772444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hose Clamp (A)
      *2 Hose Clamp (B)
    2. Disengage the 2 clamps to remove the hose clamp (B) from the No. 5 water by-pass hose and No. 6 water by-pass hose.
    3. Slide the clip and disconnect the No. 5 water by-pass hose from the radiator assembly.

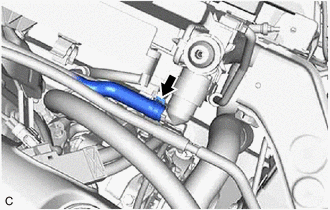

      GTY768492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. DISCONNECT NO. 1 RADIATOR HOSE
    1. Disengage the clamp and disconnect the No. 1 radiator hose from the fan shroud assembly.
      GTY768491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the clip and disconnect the No. 1 radiator hose from the radiator assembly.
  20. DISCONNECT NO. 2 RADIATOR HOSE
    1. Slide the clip and disconnect the No. 2 radiator hose from the radiator assembly.
      GTY768490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE RADIATOR ASSEMBLY
    1. Disengage the 2 claws.
      GTY768489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides to separate the cooler condenser assembly from the radiator assembly.
      NOTE:

      Make sure not to damage the cooler condenser assembly when separating the cooler condenser assembly.

    3. Disconnect the cooling fan motor connector.
      1. Disengage the claw and raise the lock lever to disconnect the cooling fan motor connector as shown in the illustration.
        GTY765837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Lock Lever
        NOTE:

        After disconnecting the cooling fan motor connector, make sure that dirt, water or other foreign matter does not contact the connecting parts of the cooling fan motor connector.

      2. Disengage the wire harness clamp.
    4. Remove the radiator assembly with the fan shroud assembly from the vehicle body.
      NOTE:

      Do not apply excessive force to the cooler condenser assembly or pipe when removing the radiator assembly with the fan shroud assembly.

    5. Disengage the 2 claws.
      GTY768608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disengage the 2 guides to remove the fan shroud assembly from the radiator assembly.
      NOTE:

      Do not damage the radiator assembly when removing the fan shroud assembly.

  22. REMOVE RADIATOR SUPPORT CUSHION
    1. Remove the 2 radiator support cushions from the radiator assembly.
  23. REMOVE LOWER RADIATOR SUPPORT
    1. Remove the 2 lower radiator supports from the radiator assembly.
