Components [10/2020 - ]
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

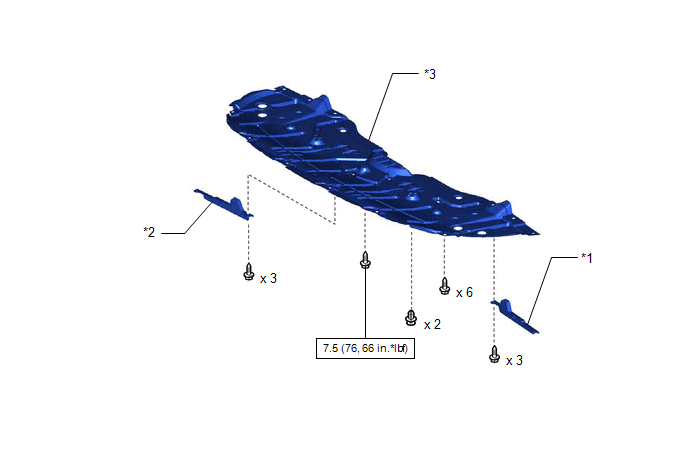

| *1 |
FRONT WHEEL OPENING EXTENSION PAD LH |
*2 |
FRONT WHEEL OPENING EXTENSION PAD RH |
| *3 |
NO. 1 ENGINE UNDER COVER |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

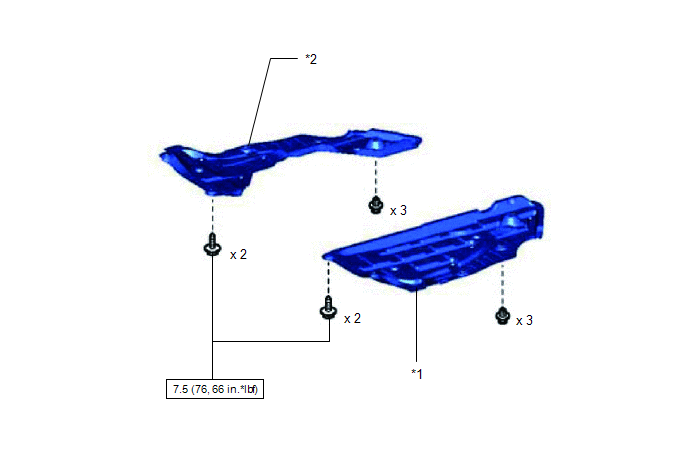

| *1 |
REAR ENGINE UNDER COVER LH |
*2 |
REAR ENGINE UNDER COVER RH |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
FRONT BUMPER ENERGY ABSORBER |
*2 |
FRONT BUMPER REINFORCEMENT |
| *3 |
NO. 2 FRONT BUMPER ENERGY ABSORBER |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *A |
for Bar Type Radiator Grille |
*B |
for Mesh Type Radiator Grille |
| *1 |
NO. 1 RADIATOR AIR GUIDE LH |
*2 |
NO. 1 RADIATOR AIR GUIDE RH |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

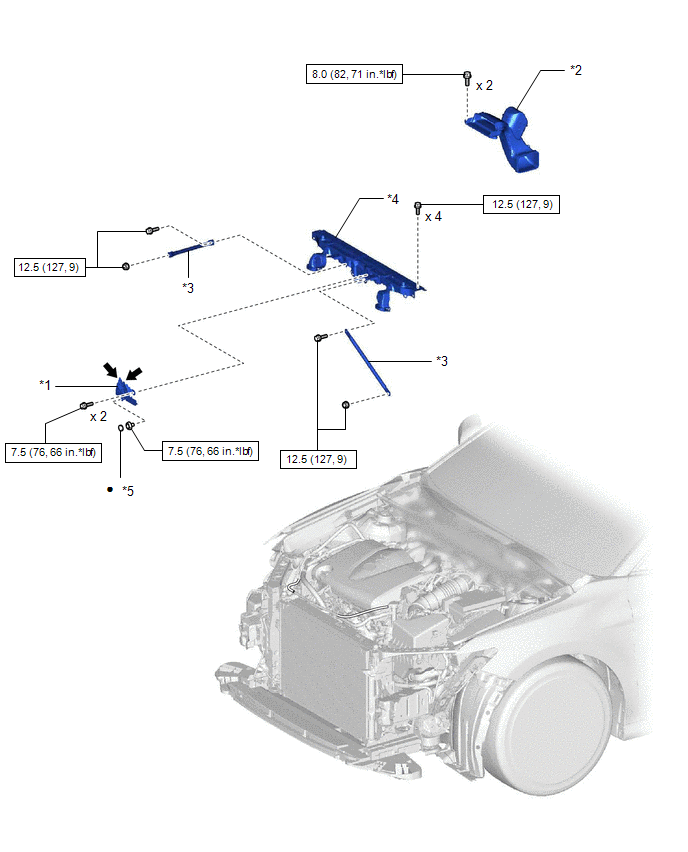

| *1 |
HOOD LOCK ASSEMBLY |
*2 |
INLET AIR CLEANER ASSEMBLY |
| *3 |
UPPER RADIATOR MOUNTING BRACKET |
*4 |
UPPER RADIATOR SUPPORT SUB-ASSEMBLY |
| *5 |
HOOD LOCK NUT CAP |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
• |
Non-reusable part |
|
MP grease |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

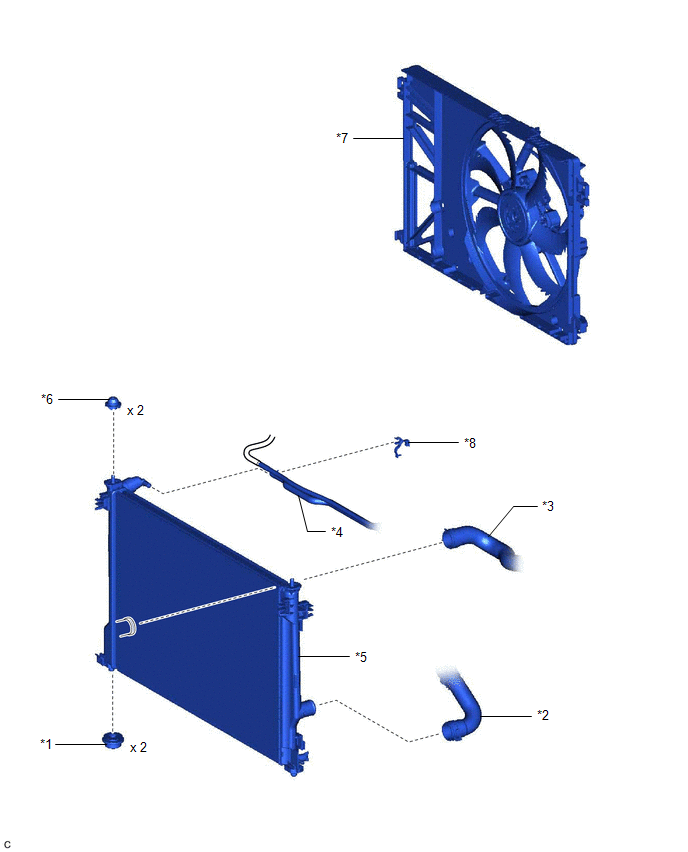

| *1 |
LOWER RADIATOR SUPPORT |
*2 |
NO. 1 RADIATOR HOSE |
| *3 |
NO. 2 RADIATOR HOSE |
*4 |
NO. 5 WATER BY-PASS HOSE |
| *5 |
RADIATOR ASSEMBLY |
*6 |
RADIATOR SUPPORT CUSHION |
| *7 |
FAN SHROUD ASSEMBLY |
*8 |
HOSE CLAMP |
