Parts Location [06/2017 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

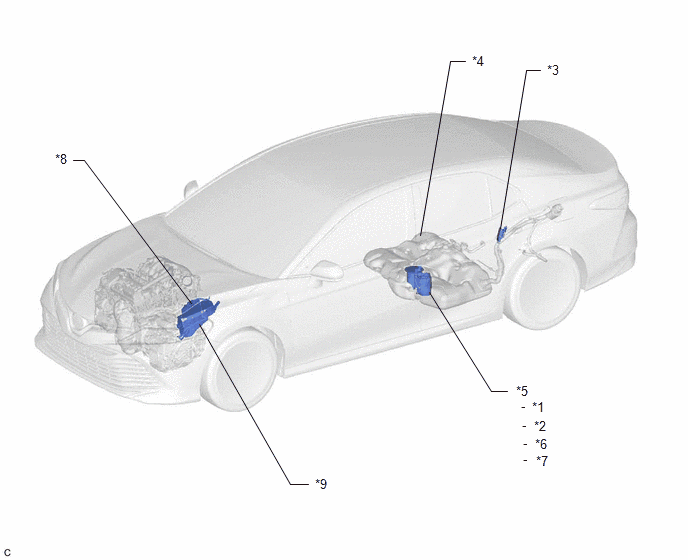

| *1 | FUEL SENDER GAUGE ASSEMBLY | *2 | FUEL PUMP (for Low Pressure) |
| *3 | FUEL PUMP CONTROL ECU | *4 | FUEL TANK ASSEMBLY |
| *5 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY | *6 | FUEL MAIN VALVE ASSEMBLY (for Low Pressure) |
| *7 | FUEL MAIN VALVE ASSEMBLY (for High Pressure) | *8 | ECM |
| *9 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - EFI MAIN NO. 2 RELAY - EFI MAIN NO. 2 FUSE - INJ FUSE |
- | - |

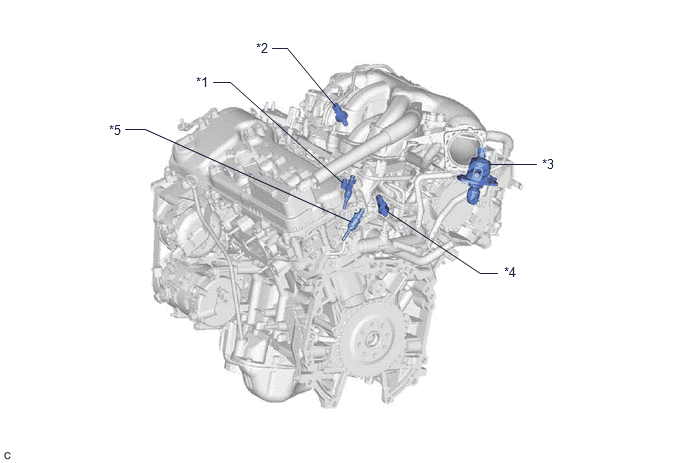

| *1 | FUEL INJECTOR ASSEMBLY (for Port Injection) | *2 | FUEL PRESSURE SENSOR (FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY) (for Low Pressure) |
| *3 | FUEL PUMP ASSEMBLY (for High Pressure) | *4 | FUEL PRESSURE SENSOR (FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY LH) (for High Pressure) |
| *5 | FUEL INJECTOR ASSEMBLY (for Direct Injection) | - | - |
