Removal [06/2017 - 10/2020]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE BATTERY

    Refer to REMOVAL [06/2017 - 10/2020]

  2. REMOVE ECM

    Refer to REMOVAL [06/2017 - 10/2020]

  3. REMOVE BATTERY CLAMP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 25 [08/2018 - 10/2020]

  4. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

    Refer to REMOVAL [06/2017 - ]

  5. REMOVE FRONT LOWER NO. 1 FLOOR HEAT INSULATOR
    1. Remove the 2 nuts and front lower No. 1 floor heat insulator from the vehicle body.
      GTY762237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY

    Refer to REMOVAL [06/2017 - ]

  7. REMOVE NO. 1 CONSOLE BOX DUCT

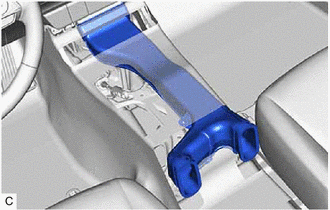

    1. Remove the No. 1 console box duct.
      GTY762236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
    1. While disengaging the clip as shown in the illustration, disconnect the transmission control cable assembly from the transmission control shaft lever together with the clip.
      GTY761119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip
      *b 45° to 60°
    2. Remove the clip and disconnect the transmission control cable assembly from the No. 1 transmission control cable bracket.
      GTY745940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 nuts and disconnect the transmission control cable assembly from the vehicle body.
      GTY762243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 nuts and then remove the transmission control cable assembly from the vehicle body.
      GTY762244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
