Components [06/2017 - ]

WARNING: This page is about a different variant/trim than selected.

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BATTERY CLAMP SUB-ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

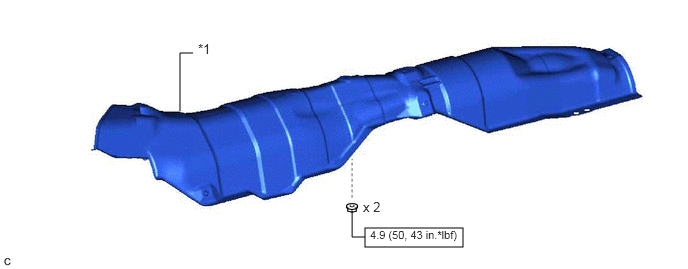

Fig 2: Transmission Control Cable Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT LOWER NO. 1 FLOOR HEAT INSULATOR	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

Fig 3: Transmission Control Cable Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*1	NO. 1 CONSOLE BOX DUCT	*2	TRANSMISSION CONTROL CABLE ASSEMBLY
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
