Components [06/2017 - 08/2018]
WARNING: This page is about a different variant/trim than selected.

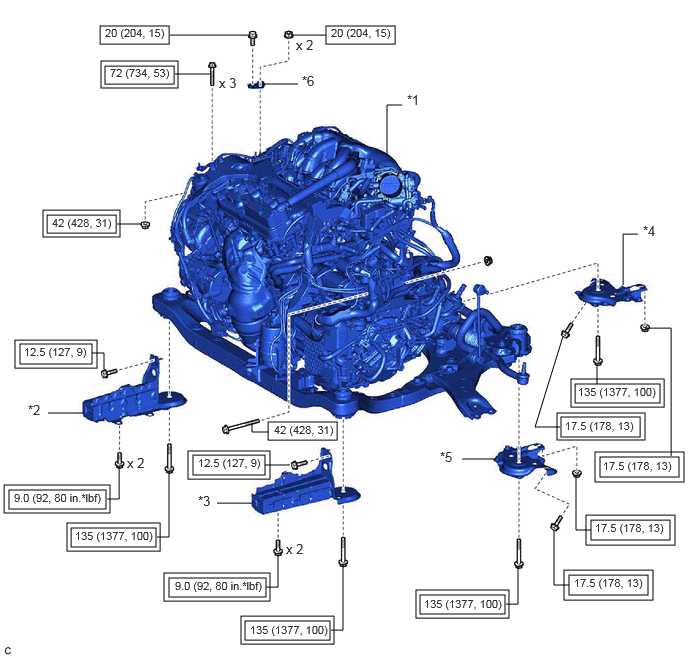

Fig 1: Automatic Transaxle Assembly Replacement Components With Torque Specifications [06/2017 - 08/2018] (1 Of 5)
| Callout | Description | Callout | Description |
| *1 | ENGINE ASSEMBLY WITH TRANSAXLE | *2 | FRONT BUMPER EXTENSION SUB-ASSEMBLY RH |
| *3 | FRONT BUMPER EXTENSION SUB-ASSEMBLY LH | *4 | FRONT SUSPENSION MEMBER BRACKET SUB-ASSEMBLY RH |
| *5 | FRONT SUSPENSION MEMBER BRACKET SUB-ASSEMBLY LH | *6 | NO. 2 ENGINE MOUNTING STAY RH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque |
Fig 2: Automatic Transaxle Assembly Replacement Components With Torque Specifications [06/2017 - 08/2018] (2 Of 5)
| Callout | Description | Callout | Description |
| *1 | ENGINE ASSEMBLY WITH TRANSAXLE | *2 | FRONT FRAME ASSEMBLY |
| *3 | REAR ENGINE MOUNTING INSULATOR | *4 | WIRE HARNESS |
| *5 | VACUUM HOSE | *6 | NO. 1 WATER BY-PASS HOSE |
| *7 | WATER BY-PASS HOSE ASSEMBLY | *8 | TRANSMISSION BREATHER CLAMP |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque |
Fig 3: Automatic Transaxle Assembly Replacement Components With Torque Specifications [06/2017 - 08/2018] (3 Of 5)
| Callout | Description | Callout | Description |
| *1 | FLYWHEEL HOUSING UNDER COVER | *2 | STARTER ASSEMBLY |
| *3 | BREATHER PLUG HOSE | *4 | BREATHER PLUG SUB-ASSEMBLY |
| *5 | FRONT ENGINE MOUNTING BRACKET | *6 | AUTOMATIC TRANSAXLE ASSEMBLY |
| *7 | ENGINE ASSEMBLY | *8 | TORQUE CONVERTER ASSEMBLY |
| *9 | DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT | *10 | WIRE HARNESS |
| *a | BLACK COLOR: x 1 SILVER COLOR: x 5 |
- | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | Toyota Genuine Clutch Spline Grease or equivalent | ||
| MP grease | * | Precoated part |
Fig 4: Automatic Transaxle Assembly Replacement Components With Torque Specifications [06/2017 - 08/2018] (4 Of 5)
| Callout | Description | Callout | Description |
| *1 | NO. 1 TRANSMISSION CONTROL CABLE BRACKET | *2 | REAR NO. 2 ENGINE MOUNTING INSULATOR |
| *3 | REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY | *4 | NO. 1 OIL COOLER TUBE SUB-ASSEMBLY WITHOUT HOSE |
| *5 | TRANSMISSION OIL COOLER | *6 | OUTLET NO. 1 OIL COOLER HOSE |
| *7 | INLET NO. 1 OIL COOLER HOSE | *8 | INLET NO. 2 OIL COOLER HOSE |
| *9 | OUTLET NO. 2 OIL COOLER HOSE | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque |

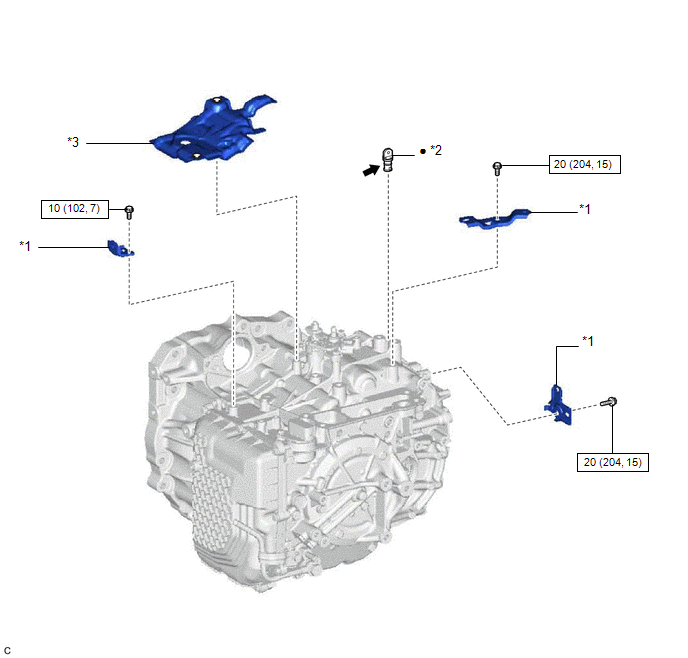

Fig 5: Automatic Transaxle Assembly Replacement Components With Torque Specifications [06/2017 - 08/2018] (5 Of 5)
| Callout | Description | Callout | Description |
| *1 | WIRE HARNESS CLAMP BRACKET | *2 | TRANSMISSION CASE PLUG ASSEMBLY |
| *3 | AUTOMATIC TRANSMISSION CASE COVER | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Toyota Genuine ATF WS | - | - |
