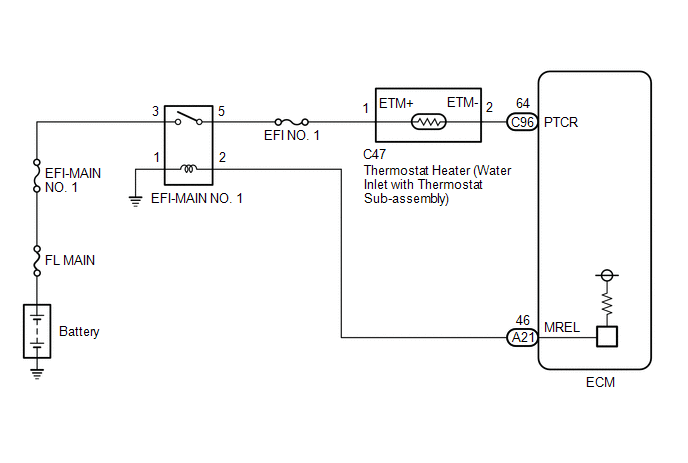

DTC P0597-12: Thermostat Heater Control Circuit Short to Battery [06/2017 - 08/2018]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY996457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
