Removal [06/2017 - 10/2020]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [06/2017 - 09/2019] , or refer to REMOVAL [09/2019 - 10/2020]

  2. DRAIN FUEL
  3. REMOVE CENTER EXHAUST PIPE ASSEMBLY

    Refer to REMOVAL [06/2017 - ]

  4. REMOVE NO. 2 FLOOR UNDER COVER

    Refer to PROCEDURE - Step 2

  5. REMOVE NO. 1 FLOOR UNDER COVER

    Refer to PROCEDURE - Step 3

  6. REMOVE NO. 1 FUEL TANK PROTECTOR
    1. Using needle nose pliers, remove the 4 clips and No. 1 fuel tank protector from the fuel tank assembly.
      GTY759543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Needle Nose Pliers
  7. DISCONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. Disconnect the fuel tank main tube sub-assembly from the fuel pipe.
      GTY760869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Refer to PRECAUTION [06/2017 - 09/2019] , or refer to PRECAUTION [09/2019 - ]

  8. DISCONNECT FUEL TANK BREATHER TUBE SUB-ASSEMBLY
    1. Disconnect the fuel tank breather tube sub-assembly from the fuel pipe.
      GTY754965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Refer to PRECAUTION [06/2017 - 09/2019] , or refer to PRECAUTION [09/2019 - ]

  9. DISCONNECT FUEL TANK TO FILLER PIPE HOSE
    1. Disconnect the fuel tank to filler pipe hose from the fuel tank assembly.
      GTY754966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Refer to PRECAUTION [06/2017 - 09/2019] , or refer to PRECAUTION [09/2019 - ]

  10. REMOVE FUEL TANK ASSEMBLY
    WARNING:

    The fuel tank assembly is very heavy. Be sure to follow the procedure described in the repair information, or the fuel tank assembly may fall off the engine lifter.

    1. w/ Fuel Outlet Valve Assembly:
      1. Disconnect the fuel cut off valve with tube assembly from the fuel outlet valve assembly.
        GTY754969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Refer to PRECAUTION [06/2017 - 09/2019] , or refer to PRECAUTION [09/2019 - ]

    2. w/o Fuel Outlet Valve Assembly:

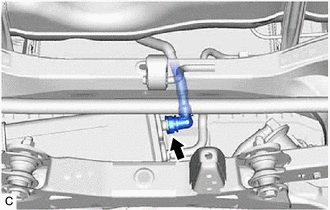

      1. Disconnect the fuel cut off valve with tube assembly from the canister (charcoal canister assembly).
        GTY842421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Refer to PRECAUTION [06/2017 - 09/2019] , or refer to PRECAUTION [09/2019 - ]

    3. Support the fuel tank assembly using an engine lifter.
      GTY754967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Using height adjustment attachments and plate lift attachments, keep the fuel tank assembly horizontal.

    4. Remove the 4 bolts, No. 1 fuel tank band sub-assembly LH and No. 1 fuel tank band sub-assembly RH.
      GTY760867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Lower the engine lifter to remove the fuel tank assembly.
      NOTE:
      • Be careful not to drop the fuel tank assembly.
      • When removing the fuel tank assembly, tilt it slightly to prevent it from interfering with the surrounding parts.
  11. REMOVE FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. Disengage the clamp to remove the fuel tank main tube sub-assembly from the fuel tank assembly.
      GTY760868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 6 FUEL TANK CUSHION
    1. Remove the No. 6 fuel tank cushion from the fuel tank assembly.
      GTY754962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE NO. 1 FUEL TANK CUSHION
    1. Remove the 2 No. 1 fuel tank cushions from the fuel tank assembly.
      GTY754963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
