Disassembly [06/2017 - ]: Procedure

See step  2 [06/2017 - 10/2020], or see step  2 [10/2020 - ]

1. Remove the harness protector from the fuel pump harness.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Harness Protector
   	Fuel Pump Harness Connector

2. Disconnect the 2 fuel pump harness connectors.
3. Disengage the clamp to disconnect the fuel pump harness from the fuel suction plate sub-assembly.
   NOTE:

   Do not damage the wire harness.

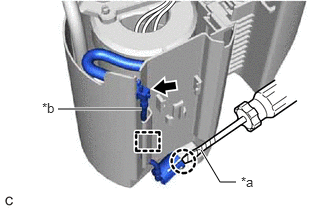

4. Using a screwdriver with its tip wrapped with protective tape, disengage the claw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape
   *b	Fuel Pump Filter Hose

   NOTE:

   Do not damage the fuel sub-tank.

5. Disengage the clamp and disconnect the fuel pump filter hose from the fuel sub-tank.
   NOTE:

   Do not damage the fuel sub-tank.

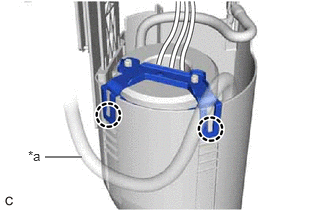

6. Disengage the 2 claws and remove the fuel filter from the fuel sub-tank.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Tube

   NOTE:

   Do not do anything which may separate the tube from either the fuel suction plate sub-assembly or fuel filter, such as applying excessive force to the tube.

   Refer to PRECAUTION [06/2017 - 09/2019] , or refer to PRECAUTION [09/2019 - ]

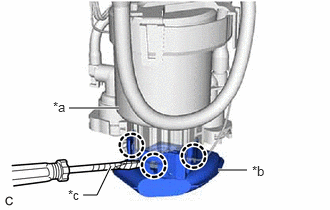

7. Using a screwdriver with its tip wrapped with protective tape, disengage the 3 claws, and remove the suction filter from the fuel filter.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Fuel Filter
   *b	Suction Filter
   *c	Protective Tape

   NOTE:

   Do not damage the fuel filter or suction filter.

8. Disengage the claw to disconnect the fuel pump harness from the suction filter.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

9. Remove the fuel pump from the fuel filter.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

10. Disconnect the fuel pump harness connector to remove the fuel pump harness from the fuel pump.

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

11. Remove the O-ring and fuel pump spacer from the fuel pump.

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    *1	O-ring
    *2	Fuel Pump Spacer
    *a	5.0 mm (0.197 in.)

    NOTE:

    Be careful not to damage the sealing surface.

    HINT:

    If the O-ring still remains in the fuel filter, remove it using a wire tip (1 mm (0.0394 in.) diameter) that is formed as shown in the illustration.
