Removal [10/2020 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to REMOVAL [10/2020 - ]

  2. REMOVE FUEL SENDER GAUGE ASSEMBLY

    See step  2

  3. REMOVE FUEL PUMP

    See step  2

  4. REMOVE FUEL MAIN VALVE ASSEMBLY
    1. GTY763745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the fuel main valve assembly (for Low Pressure).

      1. Remove the clip from the fuel filter.
      2. Using a screwdriver with its tip wrapped with protective tape, remove the fuel main valve assembly from the fuel filter.
        GTY750809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Protective Tape
        NOTE:
        • Pull out the fuel main valve assembly carefully because the O-rings are firmly installed between the fuel main valve assembly and fuel filter.
        • Do not damage the fuel filter.
      3. Remove the 2 O-rings from the fuel main valve assembly.
        GTY652718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 O-ring

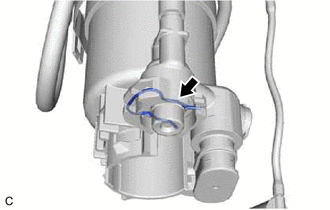

    2. GTY763738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the fuel main valve assembly (for High Pressure).

      1. Remove the clip from the fuel filter.
      2. Using a screwdriver with its tip wrapped with protective tape, remove the fuel main valve assembly from the fuel filter.
        GTY754535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Protective Tape
        NOTE:
        • Pull out the fuel main valve assembly carefully because the O-rings are firmly installed between the fuel main valve assembly and fuel filter.
        • Do not damage the fuel filter.
      3. Remove the 2 O-rings from the fuel main valve assembly.
        GTY652718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 O-ring
