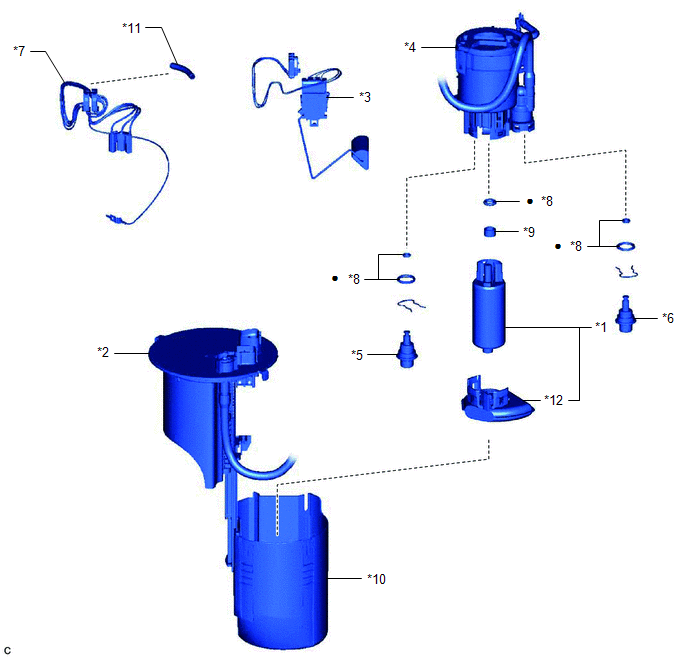

Components [06/2017 - ]
WARNING: This page is about a different variant/trim than selected.
| *1 | FUEL PUMP | *2 | FUEL SUCTION PLATE SUB-ASSEMBLY |
| *3 | FUEL SENDER GAUGE ASSEMBLY | *4 | FUEL FILTER |
| *5 | FUEL MAIN VALVE ASSEMBLY (for Low Pressure) | *6 | FUEL MAIN VALVE ASSEMBLY (for High Pressure) |
| *7 | FUEL PUMP HARNESS | *8 | O-RING |
| *9 | FUEL PUMP SPACER | *10 | FUEL SUB-TANK |
| *11 | HARNESS PROTECTOR | *12 | SUCTION FILTER |
| • | Non-reusable part | - | - |
