Removal [06/2017 - 10/2020]: Procedure

Refer to REMOVAL [06/2017 - 10/2020]

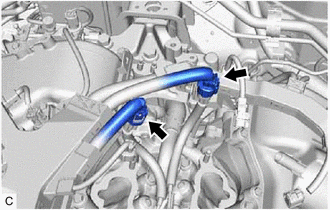

1. Using a 17 mm union nut wrench, loosen the 2 union nuts of the No. 2 fuel pipe sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the No. 2 fuel pipe sub-assembly from the fuel delivery pipe with sensor assembly LH and fuel delivery pipe RH.

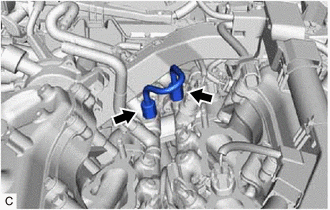

1. Disconnect the No. 6 engine wire connector and No. 7 engine wire connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

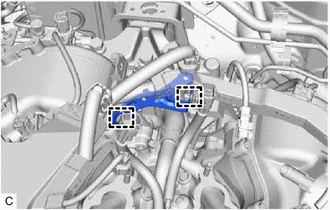

2. Disengage the 2 clamps to remove the wire harness clamp bracket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

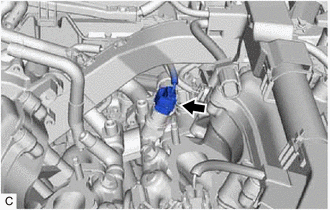

1. Disconnect the fuel pressure sensor connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

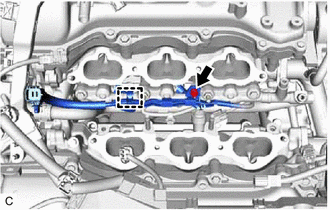

2. Remove the bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Disengage the clamp to disconnect the No. 7 engine wire from the fuel delivery pipe with sensor assembly LH.

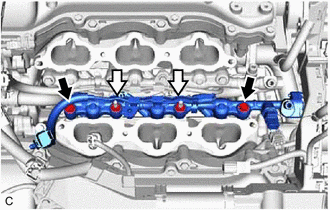

4. Remove the 2 bolts, 2 nuts and fuel delivery pipe with sensor assembly LH with the 3 fuel injector assemblies from the cylinder head LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Bolt
   	Nut

   NOTE:

   • If fuel intrudes into the combustion chamber, there may be adverse affects to the engine main body.
   • Make sure not to touch or strike the tips of the fuel injector assemblies.
   • Pull and remove the fuel delivery pipe with sensor assembly LH in a straight line without tilting it.
5. Disconnect the 3 fuel injector assembly connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

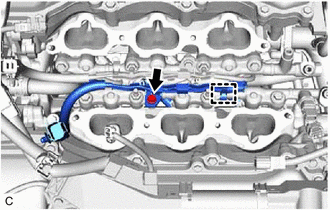

1. Remove the bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the clamp to disconnect the No. 6 engine wire from the fuel delivery pipe RH.

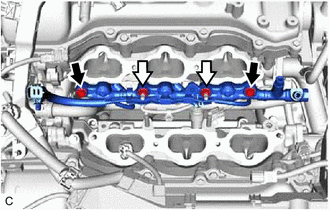

3. Remove the 2 bolts, 2 nuts and fuel delivery pipe RH with the 3 fuel injector assemblies from the cylinder head sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Bolt
   	Nut

   NOTE:

   • If fuel intrudes into the combustion chamber, there may be adverse affects to the engine main body.
   • Make sure not to touch or strike the tips of the fuel injector assemblies.
   • Pull and remove the fuel delivery pipe RH in a straight line without tilting it.
4. Disconnect the 3 fuel injector assembly connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Secure the fuel delivery pipe with sensor assembly LH and fuel delivery pipe RH in a vise between aluminum plates and pull out the 6 fuel injector assemblies.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Pull and remove each fuel injector assembly in a straight line to avoid damaging the seal surface of the fuel delivery pipe with sensor assembly LH and fuel delivery pipe RH O-ring.
   • After removing the fuel injector assemblies, remove any O-rings, No. 1 fuel injector back-up rings and No. 3 fuel injector back-up rings remaining on the fuel delivery pipe with sensor assembly LH and fuel delivery pipe RH side.
   • Attach a tag or label with the corresponding cylinder number to each fuel injector assembly so that they can be installed to their original locations.
2. Remove the nozzle holder clamp from each fuel injector assembly.
3. Using needle nose pliers, remove the No. 3 fuel injector back-up ring from each fuel injector assembly.
   NOTE:

   Do not damage the area that contacts the O-ring.

4. Remove the O-ring and No. 1 fuel injector back-up ring from each fuel injector assembly.
5. Remove the C-ring and injector vibration insulator from each fuel injector assembly.

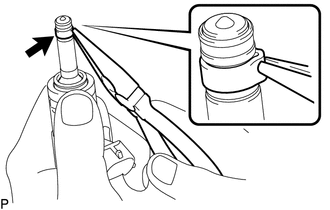

1. Using the tip of needle nose pliers, pinch and pull the fuel injector seal at several points to stretch it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Excessively pinching the fuel injector seal may damage the groove of the fuel injector assembly.
   • If a fuel injector assembly is dropped or the tip of the fuel injector assembly is struck, replace it with a new one.
2. Remove the fuel injector seal from each fuel injector assembly.
