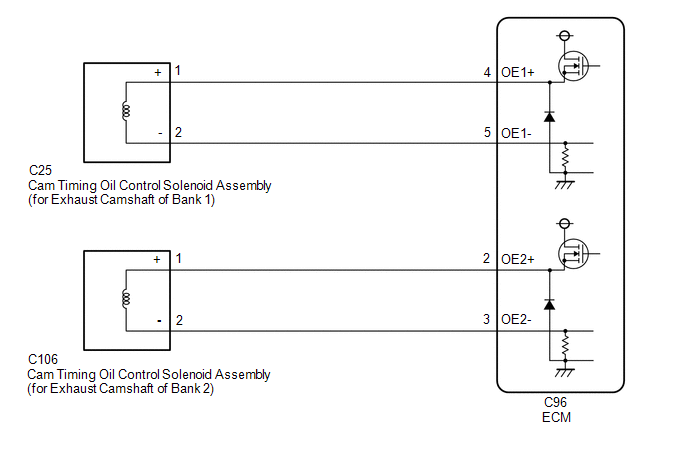

DTC P0013-13: Camshaft Position "B" - Actuator Bank 1 Circuit Open; DTC P0023-13: Camshaft Position "B" - Actuator Bank 2 Circuit Open [06/2017 - 08/2018]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY741025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
