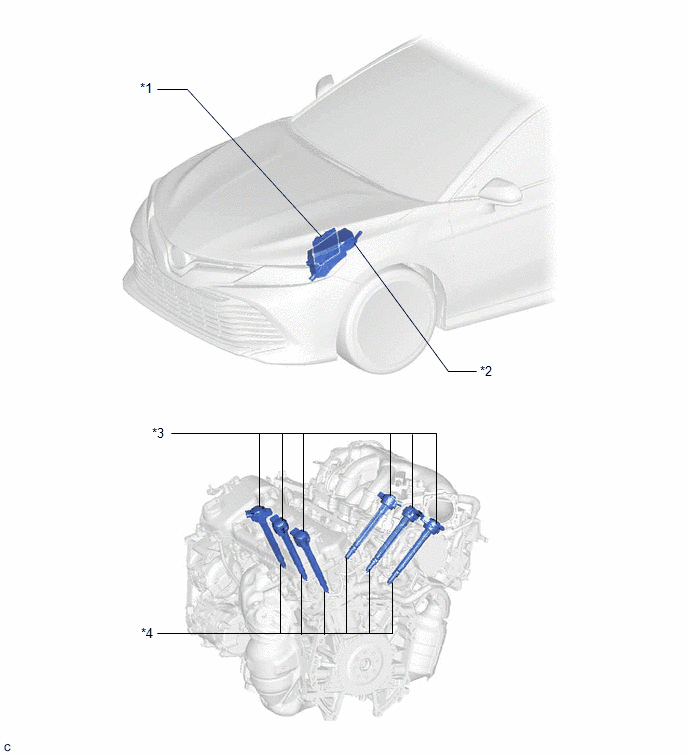

Parts Location [06/2017 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
ECM |
*2 |
ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY
- INJ FUSE |
| *3 |
IGNITION COIL ASSEMBLY |
*4 |
SPARK PLUG |
