Drive Start Control System [06/2017 - 08/2018]: Description

WARNING: This page is about a different variant/trim than selected.

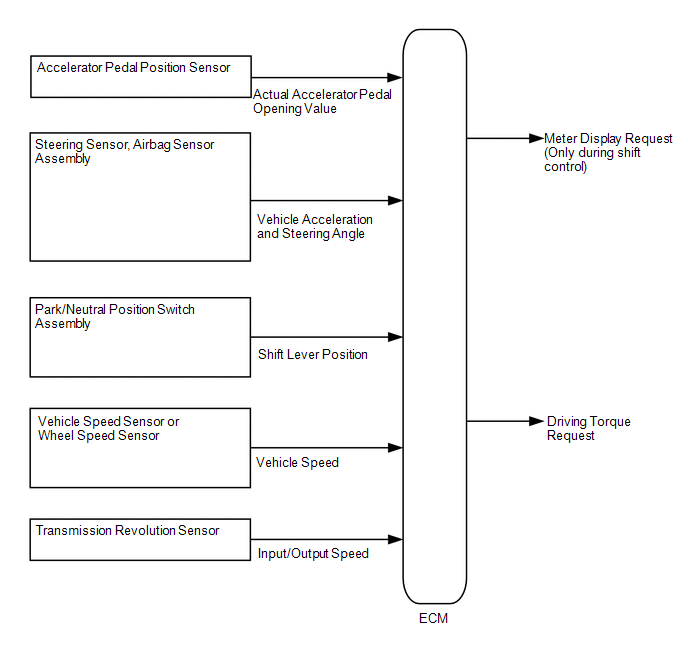

The drive start control is controlled by the ECM.

If the ECM determines that the shift lever and accelerator pedal are operated abnormally, driving torque is restricted and, when necessary, a warning is displayed on the combination meter assembly.

GTY766823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
