Disassembly [06/2017 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE OIL PUMP RELIEF VALVE

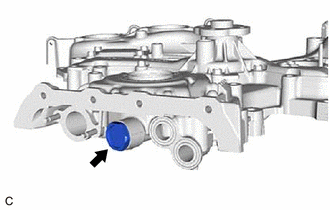

    1. Using a 27 mm socket wrench, remove the oil pump relief valve plug from the oil pump cover.
      GTY682587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the oil pump relief valve spring and oil pump relief valve from the valve hole.
  2. REMOVE OIL PUMP COVER

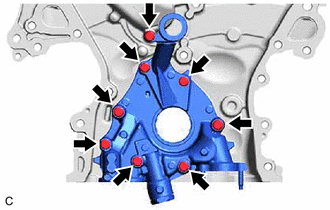

    1. Remove the 8 bolts and oil pump cover from the timing chain cover assembly.
      GTY658158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE OIL PUMP ROTOR SET

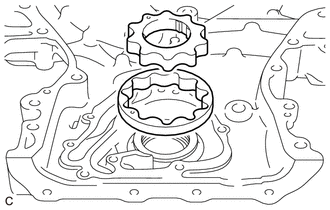

    1. Remove the drive rotor and driven rotor from the timing chain cover assembly.
      GTY658157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
