Removal [06/2017 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT FENDER APRON SEAL RH

    Refer to PROCEDURE - Step 13 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 13 [08/2018 - 10/2020] , or refer to PROCEDURE - Step 13 [10/2020 - 08/2022] , or refer to PROCEDURE - Step 13 [08/2022 - 08/2023] , or refer to PROCEDURE - Step 13 [08/2023 - ]

  2. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 5 [06/2017 - 08/2021] , or refer to PROCEDURE - Step 5 [08/2021 - ]

  3. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY

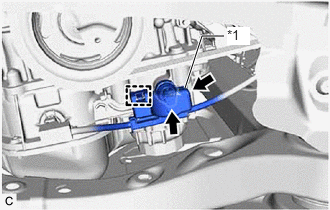

    1. Disengage the clamp to disconnect the wire harness protector.
      GTY765569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Wire Harness Protector
    2. Disconnect the engine oil pressure switch assembly connector.

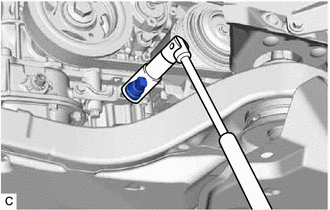

    3. Using a 24 mm deep socket wrench, remove the engine oil pressure switch assembly.
      GTY761250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
