Components [06/2017 - ]

WARNING: This page is about a different variant/trim than selected.

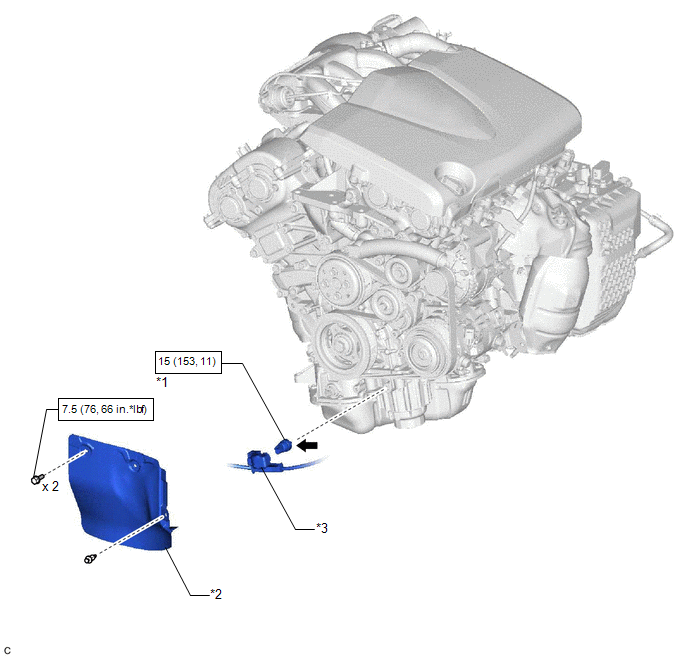

Fig 1: Oil Pressure Switch Replacement Components With Torque Specifications
GTY744923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE OIL PRESSURE SWITCH ASSEMBLY *2 FRONT FENDER APRON SEAL RH
*3 WIRE HARNESS PROTECTOR - -
N*m (kgf*cm, ft*lbf): Specified torque Adhesive 1344
* Precoated part - -
