Removal [10/2020 - 08/2022]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL ENGINE ASSEMBLY TO ENGINE STAND

    Refer to REMOVAL [10/2020 - 08/2022]

  2. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 28

  3. REMOVE OIL STRAINER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 29

  4. REMOVE ENGINE OIL LEVEL SENSOR

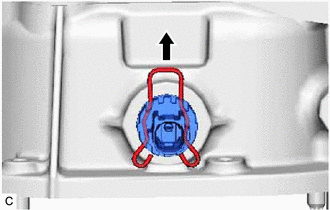

    1. Remove the clip from the engine oil level sensor.
      GTY761248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

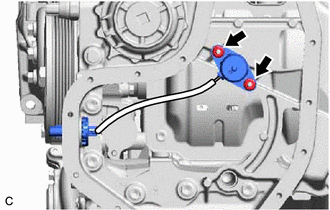

    2. Remove the 2 nuts and engine oil level sensor from the oil pan sub-assembly.
      GTY761249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
