Components [06/2017 - ]

WARNING: This page is about a different variant/trim than selected.

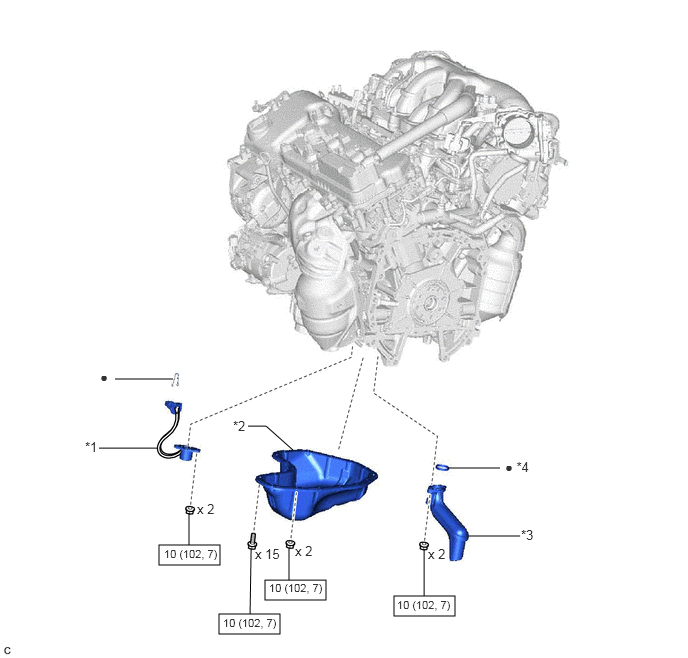

Fig 1: Oil Level Sensor Replacement Components With Torque Specifications
GTY767995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE OIL LEVEL SENSOR *2 NO. 2 OIL PAN SUB-ASSEMBLY
*3 OIL STRAINER SUB-ASSEMBLY *4 OIL STRAINER GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
