Removal [06/2017 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 19 [08/2018 - 10/2020] , or refer to PROCEDURE - Step 19 [10/2020 - 08/2022] , or refer to PROCEDURE - Step 19 [08/2022 - 08/2023] , or refer to PROCEDURE - Step 19 [08/2023 - ]

  2. REMOVE PURGE VALVE (PURGE VSV)
    1. Disconnect the purge valve (purge VSV) connector.

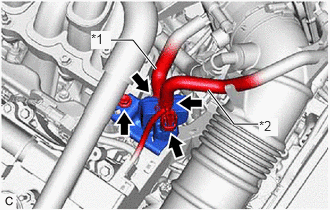

      GTY745876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Fuel Vapor Feed Hose
      *2 Fuel Vapor Feed Hose
    2. Slide the clip and disconnect the fuel vapor feed hose from the purge valve (purge VSV).
    3. Disconnect the No. 1 fuel vapor feed hose from the purge valve (purge VSV).
    4. Remove the bolt and purge valve (purge VSV) from the intake air surge tank assembly.
